A80803: Multi-Topology LED Driver with PWM Dimming and Seamless High/Low Intensity Modes

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A80803 ECAD Model Type Image
A80803 Datasheet
Navigate

Description

Top Features

Packaging

The A80803 is an automotive-grade LED controller for LED headlamps and DRL/position lamps. It's a unique solution in the market, leveraging multi-topology conversion and patented IP to enable smooth high/low/high beam transitions in a single IC. The A80803’s innovative features make it easier for headlamp designers to bring advanced functionality to mainstream vehicles, enabling higher performance and more compact designs at an overall lower solution cost.

The multi-topology single-ended controller design, combined with wide input/output voltage capability, provides a universal solution for a wide variety of use cases and/or number of LEDs. It's EMC and thermal friendly, and includes both a FET driver for PWM control and a controlled slew rate driver for high/low intensity changeover to minimize over/undershoot. Options for SPI-based control or EEPROM-based end-of-line programming for standalone operation further extend the range of possibilities.

  • Multi-topology controller, including changeover during high/low beam, provides flexibility in number of LEDs driven
  • Unique slew rate control solves over/undershoot issues during high/low intensity transition
  • Options for SPI control or EEPROM programming enable a choice of local uC interface or "standalone" cost optimized solution
  • Includes a local 5V/50mA linear regulator for low power uC or external circuitry
  • Incorporates extensive fault detection and reporting through SPI, or hardwired fault signals, for globally recognized safety compliance
  • Wide input and output voltage covers a broad range of use cases

Typical Applications

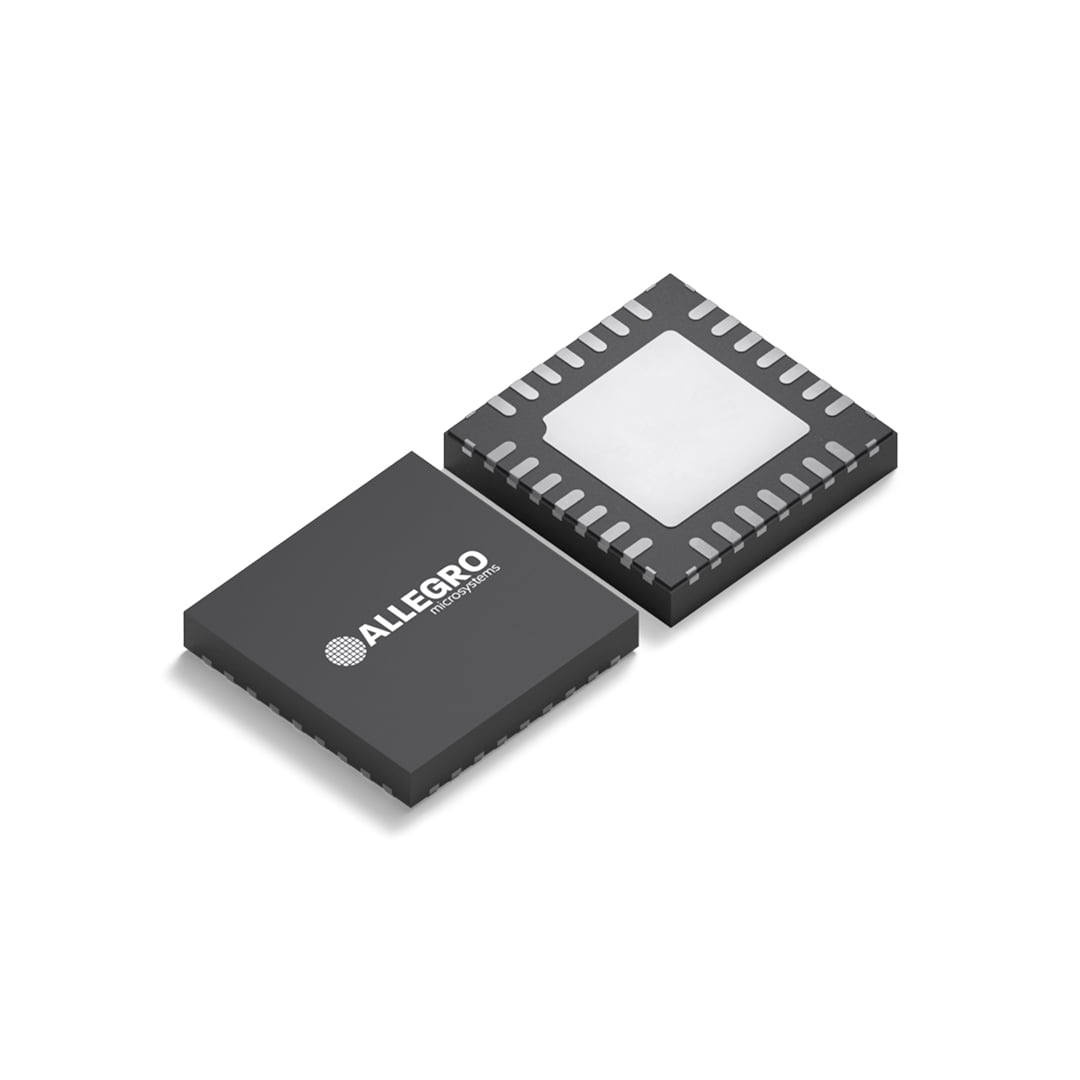

32-Pin QFN (suffix ET)

ET Packaging Documentation

× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 1
Document Type Document Name
Application Note
Design Considerations in Selection of Converter Configuration for Automotive LED Headlight Applications
