APM80905KNBBTR-1
- operating_input_voltage_min_v
- 4.5
- operating_input_voltage_max_v
- 36
- market
- Automotive
- topology
- Buck
- iout_per_channel_ma
- 4000
- number_of_channels
- 1
- iout_total_ma
- 4000

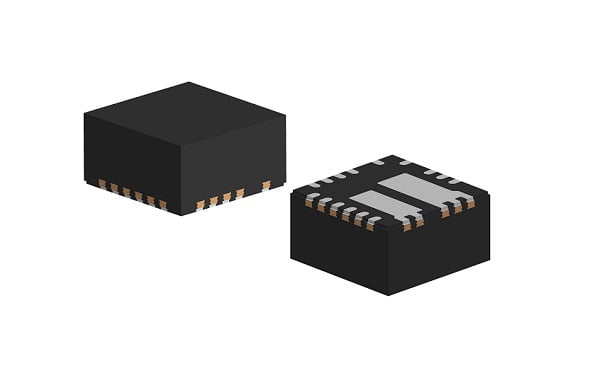

- package
- 24-Pin QFN
APM80905は、DMS用途向けに設計されたASIL-B準拠のLEDドライバで、最大4Aの安定化電流出力と内蔵PWM監視機能によって安全性を強化します。プログラム可能なスイッチング周波数、アナログ調光、堅牢なフォルト保護の機能を備えています。
Product Details
Product Details
Top Features
- Automotive ASIL-B, AEC-Q100 Grade 1 qualified solution for infrared LED Driver Monitoring System (DMS)
- Ultra-low EMI architecture with integrated EMI mitigation capacitors and spread spectrum operation to comply with Automotive requirements.
- Safety protection against out-of-range PWM on-time and duty cycle with PWM monitoring feature for Eye-Safe operation, as well as several other ASIL Safety measures.
- High integration architecture including high-side and low side MOSFET switches and a 5V peripheral LDO to reduce solution size and cost.
