A8586KEJTR-T
- operating_input_voltage_min_v
- 3.8
- operating_input_voltage_max_v
- 36
- output_current_a
- 3.5
- topology
- Buck
- frequency
- 0.2 to 4.0
- package
- 10-Pin DFN
- market
- Automotive

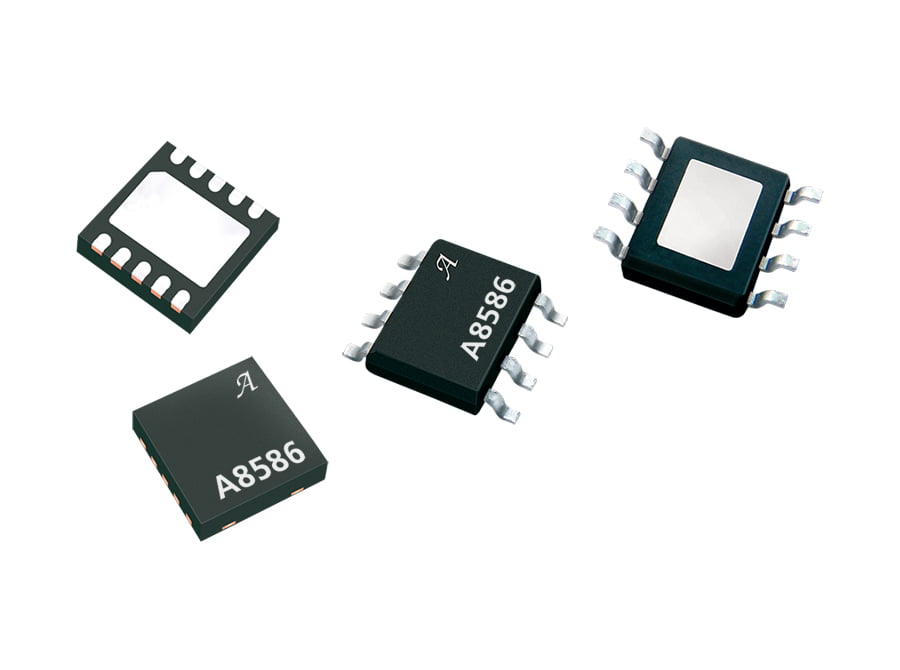

A8586は、広入力電圧範囲 (3.8V～36V)、調整可能な出力電圧 (0.8V～30V)、最大4MHzのプログラム可能なスイッチング周波数に対応し、高効率のステップダウン降圧を提供します。内蔵のMOSFETと電流モード制御により、設計が簡素化されます。
Product Details
Product Details
Top Features
- Automotive AEC-Q100 qualified
- Supply voltage from 3.8 V to 36 V
- Output voltage adjustable from 0.8 V to 30 V
- Maximized duty cycle for low dropout operation
- Low 30 μA operational quiescent current
- 150 mΩ integrated MOSFET switch
- Programmable switching frequency up to 4 MHz
- Improved EMC with frequency dithering (A8586 and A8586-2) and controlled switch node rise and fall times
- Ceramic capacitor stable
- Internal soft start
- Over current protection
Target Application
Part Number Specifications and Availability
View Full Specification Details
A8586KEJTR-T-2
- operating_input_voltage_min_v
- 3.8
- operating_input_voltage_max_v
- 36
- output_current_a
- 3.5
- topology
- Buck
- frequency
- 0.2 to 4.0
- package
- 10-Pin DFN
- market
- Automotive
A8586KLJTR-T
- operating_input_voltage_min_v
- 3.8
- operating_input_voltage_max_v
- 36
- output_current_a
- 3.5
- topology
- Buck
- frequency
- 0.2 to 4.0
- package
- 8-Pin SOIC
- market
- Automotive
A8586KLJTR-T-1
- operating_input_voltage_min_v
- 3.8
- operating_input_voltage_max_v
- 36
- output_current_a
- 3.5
- topology
- Buck
- frequency
- 0.2 to 4.0
- package
- 8-Pin SOIC
- market
- Automotive
A8586KLJTR-T-2
- operating_input_voltage_min_v
- 3.8
- operating_input_voltage_max_v
- 36
- output_current_a
- 3.5
- topology
- Buck
- frequency
- 0.2 to 4.0
- package
- 8-Pin SOIC
- market
- Automotive
