保護機能内蔵フルブリッジDMOS PWMモータ ドライバ

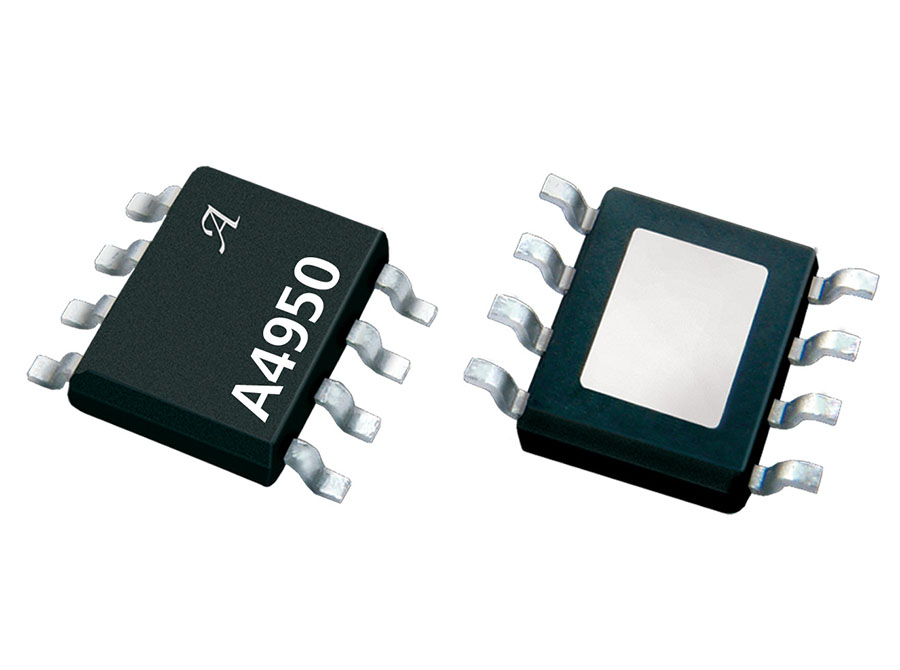

A4950

Markets Served

A4950は、DCモータの効率的で信頼性が高いPWM制御を提供します。最大±3.5Aのピーク出力電流に対応し、保護機能を内蔵して、堅牢なパフォーマンスを実現します。車載グレードおよび商用グレードで提供されています。

Evaluation Board
A4950 データシート

Product Details

Top Features

  • 低 RDS(on) 出力
  • 過電流保護 (OCP)
    • モータ短絡保護
    • モータ リードの短絡接地保護
    • モータ リードの短絡バッテリ保護
  • 低電力スタンバイ モード
  • 調整可能な PWM 電流限界
  • 同期整流
  • 内部低電圧ロックアウト (UVLO)
  • クロスオーバー電流防止
  • A4950K は AEC-Q100 グレード 1 認定済み
  • 車載以外の温度グレード (A4950E: -40°C ~ 85°C)
  • 自動車用温度グレード (A4950K: -40°C ~ 125°C)
Target Application

Part Number Specifications and Availability

View Full Specification Details

A4950ELJTR-T

supply_voltage_min_v
8
supply_voltage_max_v
40
peak_output_current_a
3.5
architecture
Integrated MOSFET
rds_on
1.5
sleep_current
10
temperature
-40°C to 85°C, -40°C to 125°C
package
8-Pin SOIC
market
Industrial, Automotive
typical_load_current_a
0-3

A4950KLJTR-T

supply_voltage_min_v
8
supply_voltage_max_v
40
peak_output_current_a
3.5
architecture
Integrated MOSFET
rds_on
1.5
sleep_current
10
temperature
-40°C to 85°C, -40°C to 125°C
package
8-Pin SOIC
market
Industrial, Automotive
typical_load_current_a
0-3
