Brushless DC Drivers

3相センサレス正弦波ファン ドライバIC

A5931

Markets Served

この統合型センサレス ドライバは、ファンの騒音や振動を最小限に抑え、正弦波変調とクローズドループ速度制御を採用することで静音性が高い高効率の動作を実現し、ホールセンサが不要になります。車載グレードおよび商用グレードで提供されています。

Evaluation Board

Product Details

Top Features

  • 180° サイン波駆動 - 低可聴ノイズと低振動
  • 外付けホール センサを不要とするAllegroの センサレス アルゴリズム を用いたモータ位置検出

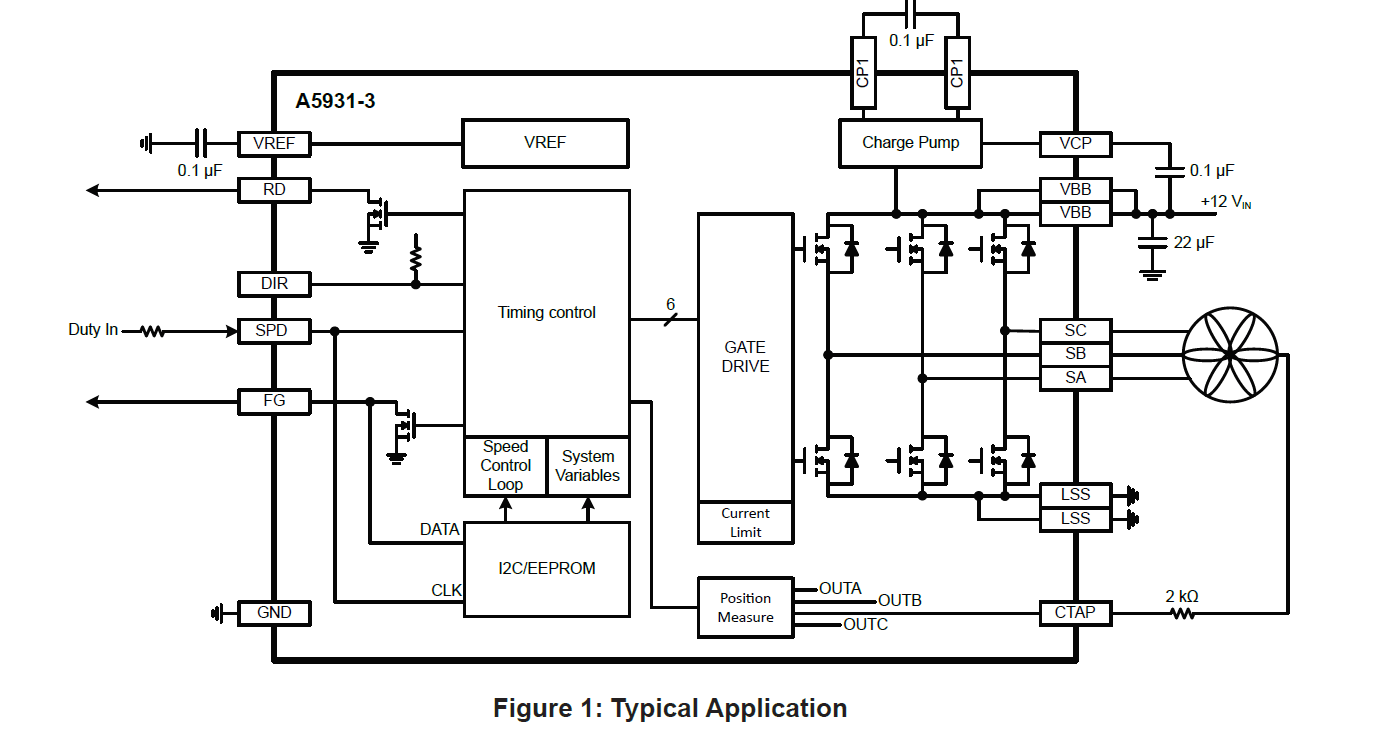

Target Application

Part Number Specifications and Availability

View Full Specification Details

A5931GESTR-1-T

supply_voltage_min_v
-
supply_voltage_max_v
-
peak_output_current_a
-
architecture
-
control_interface
-
rds_on
-
commutation
-
motor_positioning_method
-
sleep_current
-
current_sense_amplifiers
-
number_of_bridges
-
temperature
-
package
-
market
-
typical_load_current_a
-

A5931GESTR-S-T

supply_voltage_min_v
-
supply_voltage_max_v
-
peak_output_current_a
-
architecture
-
control_interface
-
rds_on
-
commutation
-
motor_positioning_method
-
sleep_current
-
current_sense_amplifiers
Integrated
number_of_bridges
-
temperature
-
package
-
market
-
typical_load_current_a
-

A5931GESTR-T

supply_voltage_min_v
5
supply_voltage_max_v
16
peak_output_current_a
4.2
architecture
Integrated MOSFET
control_interface
PWM Speed, I²C
rds_on
0.21 - 0.3, 0.225 - 0.32
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
100
current_sense_amplifiers
-
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C, -40°C to 125°C
package
24-Pin QFN, 16-Pin TSSOP
market
Industrial
typical_load_current_a
0-3

A5931GLPTR-T

supply_voltage_min_v
5
supply_voltage_max_v
16
peak_output_current_a
4.2
architecture
Integrated MOSFET
control_interface
PWM Speed, I²C
rds_on
0.21 - 0.3, 0.225 - 0.32
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
100
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C, -40°C to 125°C
package
24-Pin QFN, 16-Pin TSSOP
market
Industrial
typical_load_current_a
0-3

A5931KESTR-1-J

supply_voltage_min_v
-
supply_voltage_max_v
-
peak_output_current_a
-
architecture
-
control_interface
-
rds_on
-
commutation
-
motor_positioning_method
-
sleep_current
-
current_sense_amplifiers
-
number_of_bridges
-
temperature
-
package
-
market
-
typical_load_current_a
-

A5931KLPTR-T

supply_voltage_min_v
5
supply_voltage_max_v
16
peak_output_current_a
4.2
architecture
Integrated MOSFET
control_interface
PWM Speed, I²C
rds_on
0.21 - 0.3, 0.225 - 0.32
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
100
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C, -40°C to 125°C
package
24-Pin QFN, 16-Pin TSSOP
market
Industrial
typical_load_current_a
0-3
