ブラシ DC およびステッパ ドライバー

高出力誘導負荷向けの100VハーフブリッジMOSFETドライバ

A89500

Markets Served

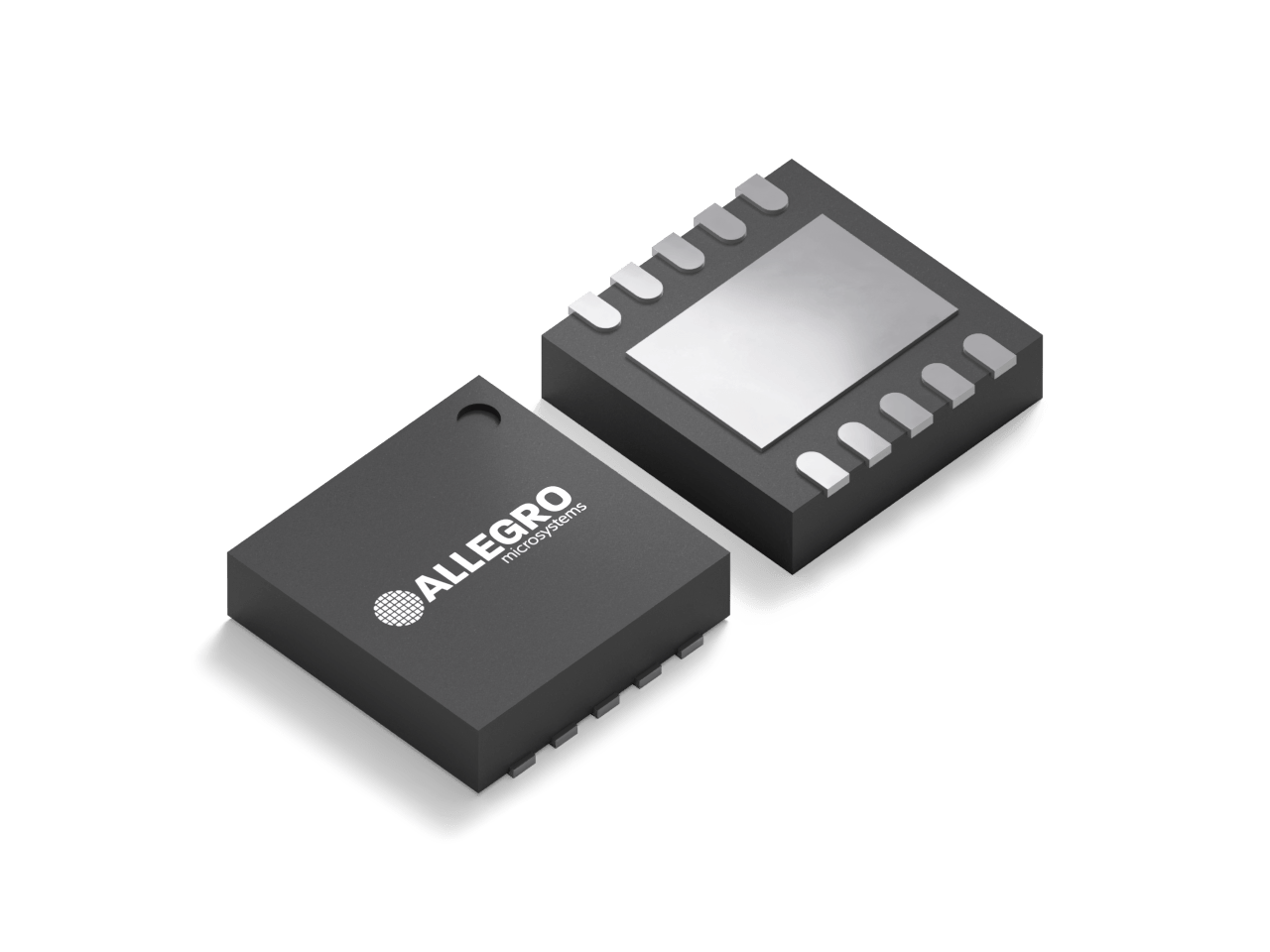

A89500は、ソレノイド、アクチュエーター、ブラシDCモータなど、最大100Vまでの高出力誘導負荷を駆動するための堅牢で高効率のソリューションです。独立したMOSFET制御、クロスコンダクション防止、低消費電力スリープモードを備えています。車載グレードおよび商用グレードで提供されています。コンパクトな3x3 DFNパッケージにより、PCBスペースが最小限に抑えられます。

View Datasheet
Evaluation Board

Product Details

Top Features

  • Operates with up to 100 V bridge supply
  • AEC-Q100 qualified (K version)
  • Integrated Bootstrap Diode
  • Low-power sleep mode
  • Fast Switching
Target Application

Part Number Specifications and Availability

View Full Specification Details

A89500GEJTR-T

supply_voltage_min_v
8
supply_voltage_max_v
100
architecture
Gate Driver
control_interface
Direct Control
rds_on
5.1
sleep_current
20
current_sense_amplifier
0
typical_load_current_a
0-20
package
10-Pin DFN
market
Automotive, Industrial

A89500KEJSR

supply_voltage_min_v
8
supply_voltage_max_v
100
architecture
Gate Driver
control_interface
Direct Control
rds_on
5.1
sleep_current
20
current_sense_amplifier
0
typical_load_current_a
0-20
package
10-Pin DFN
market
Automotive, Industrial
