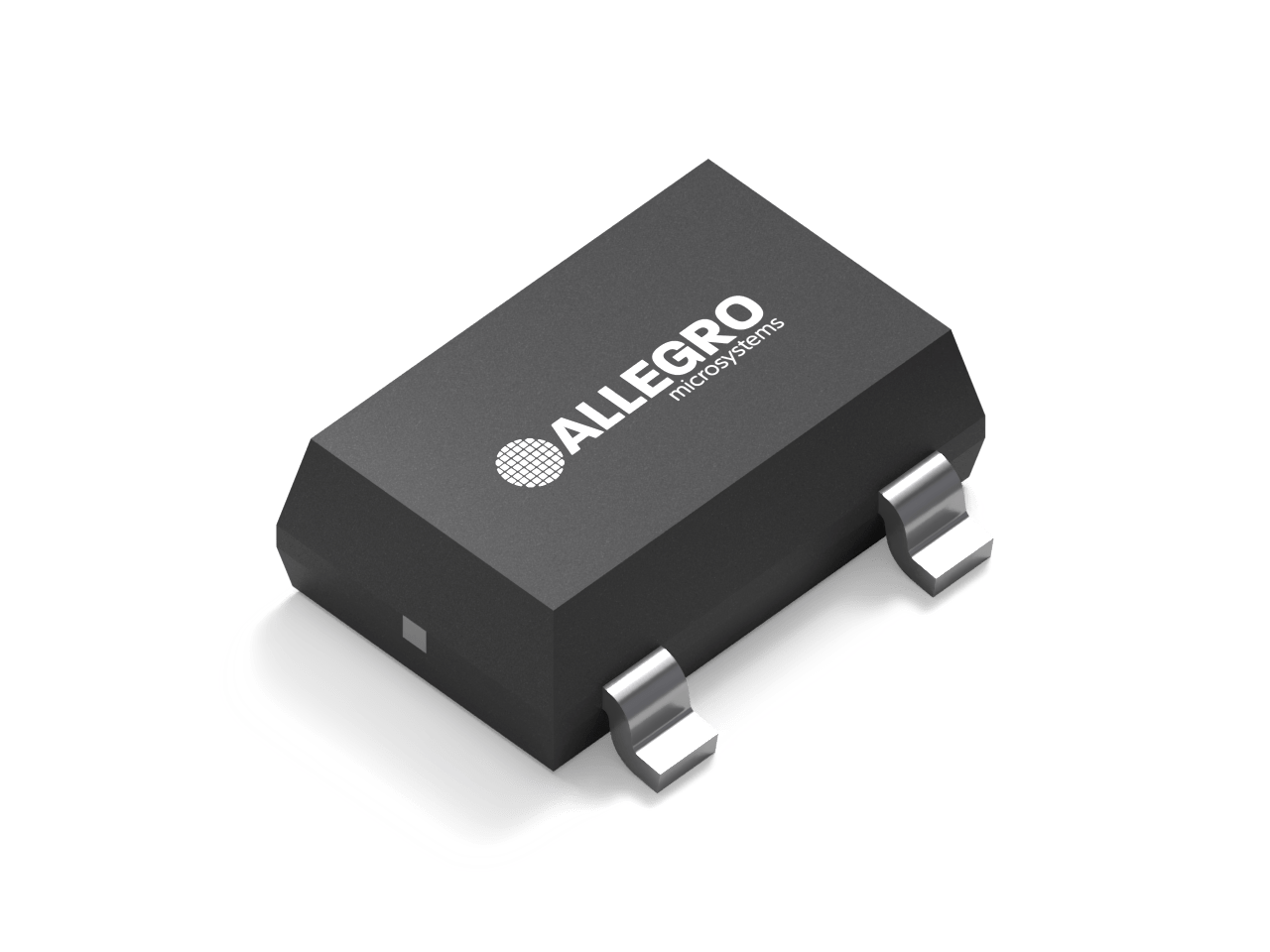

Linear Hall-Effect Sensor IC in Miniature SOT23-W Package

A1304

Markets Served

The A1304 offers a compact and cost-effective solution for linear Hall-effect sensing, with a miniature SOT23-W package, ratiometric output, and temperature stability for reliable performance.

View Datasheet

Product Details

Top Features

  • 3.3 V supply operation
  • Allegro factory programmed offset and sensitivity
  • Miniature package
  • High bandwidth, low noise analog output
  • High speed chopping scheme minimizes QVO drift across operating temperature range
  • Temperature-stable quiescent voltage output and sensitivity
  • Precise recoverability after temperature cycling
  • Wide ambient temperature range: –40°C to 85°C
  • Immune to mechanical stress
Target Application

Part Number Specifications and Availability

View Full Specification Details

A1304ELHLX-T

supply_voltage_min_v
3
supply_voltage_max_v
3.6
technology
Hall
output_type
Analog
typical_sensitivity_mv_per_g
4
typical_sensitivity_mv_per_mt
5, 40
ratiometric
Yes
sensitivity_error
±1.5
quiescent_output_typical_v
50% Vref
output_bandwidth_typical_khz
20
temp_ranges
-40°C to 85°C
programming
Factory Programmed
package
3-Pin SOT23W
market
Industrial
sensitivity_reference_voltage
3.3
customer_programmable
No
