Current Sensor ICs

Isolated, Programmable AC and DC Power Monitoring IC

ACS37800

Markets Served

The ACS37800 simplifies power monitoring in AC and DC systems, providing accurate measurements of active, reactive, and apparent power, along with RMS voltage, current, and integrated fault protection.

View Datasheet
Evaluation Board

Product Details

Top Features

  • User-programmable VRMS under/overvoltage pin
  • Dedicated voltage or current zero-crossing pin
  • User-programmable overcurrent fault (OCF)
  • I2C or SPI communication
  • Programmable averaging on two out of the three outputs: voltage, current or power
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS37800KMACTR-015B5-SPI

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000, 5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±15
bandwidth_khz
1
supply_voltage_v
5
temp_ranges
-40°C to 125°C
package

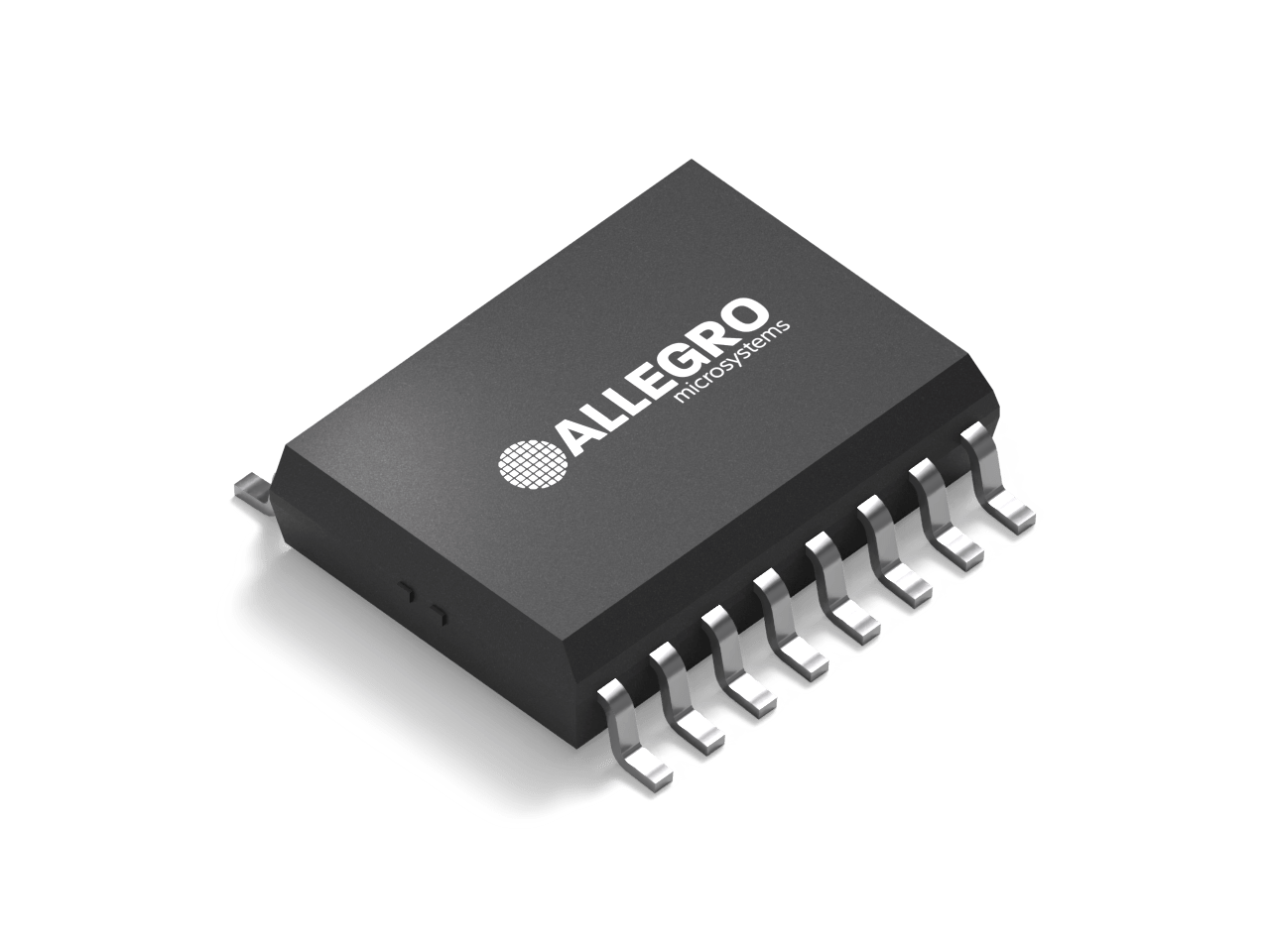

16-pin SOICW
market
Industrial
features
Programmable AC/DC Power Monitoring

ACS37800KMACTR-030B3-I2C

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000, 5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Industrial
features
Programmable AC/DC Power Monitoring

ACS37800KMACTR-030B3-SPI

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000, 5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Industrial
features
Programmable AC/DC Power Monitoring

ACS37800KMACTR-090B3-I2C

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000, 5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±90
bandwidth_khz
1
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Industrial
features
Programmable AC/DC Power Monitoring

ACS37800KMCTR-030B3-I2C-A

basic_isolation_working_voltage_vrms
1160
reinforced_isolation_working_voltage_vrms
580
isolation_voltage_vrms
-
creepage_mm
8.7
clearance_mm
8.7
primary_conductor_resistance_mohm
0.27
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Automotive
features
Programmable AC/DC Power Monitoring

ACS37800KMCTR-030B3-SPI-A

basic_isolation_working_voltage_vrms
1160
reinforced_isolation_working_voltage_vrms
580
isolation_voltage_vrms
-
creepage_mm
8.7
clearance_mm
8.7
primary_conductor_resistance_mohm
0.27
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Automotive
features
Programmable AC/DC Power Monitoring

ACS37800KMCTR-030B5-I2C-A

basic_isolation_working_voltage_vrms
1160
reinforced_isolation_working_voltage_vrms
580
isolation_voltage_vrms
-
creepage_mm
8.7
clearance_mm
8.7
primary_conductor_resistance_mohm
0.27
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
5
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Automotive
features
Programmable AC/DC Power Monitoring

ACS37800KMCTR-030B5-SPI-A

basic_isolation_working_voltage_vrms
1160
reinforced_isolation_working_voltage_vrms
580
isolation_voltage_vrms
-
creepage_mm
8.7
clearance_mm
8.7
primary_conductor_resistance_mohm
0.27
current_measurement_range_a
±30
bandwidth_khz
1
supply_voltage_v
5
temp_ranges
-40°C to 125°C
package
16-pin SOICW
market
Automotive
features
Programmable AC/DC Power Monitoring
