400kHz High-Accuracy Current Sensor with Pin-Selectable Gains

ACS37002

Markets Served

The ACS37002 family of Hall-effect current sensor ICs delivers 400 kHz bandwidth, pin-selectable gains, and fast, adjustable overcurrent fault protection. The MC package (0.27 mΩ) comes as LMCA, with reinforced isolation to 572 V_RMS (CTI Group II) at 150°C, or KMCD, industrial only (–40°C to 125°C) with 880 V_RMS reinforced isolation (CTI Group I, >600 V). The MA package (0.85 mΩ) offers 565 V_RMS reinforced isolation; LA (1.0 mΩ) delivers lower noise performance at 500 V_RMS.

Product Details

Top Features

400 kHz bandwidth with 1.1 µs response time and 0.27–1.0 mΩ conductor resistance
Reinforced isolation up to 880 VRMS on MC; 565 VRMS (MA) and 500 VRMS (LA)
LMCA, MA, and LA variants are AEC-Q100 Grade 0 qualified for –40°C to 150°C operation
KMCD variant is industrial only, for –40°C to 125°C operation
Pin-selectable gains with fast, adjustable overcurrent fault response

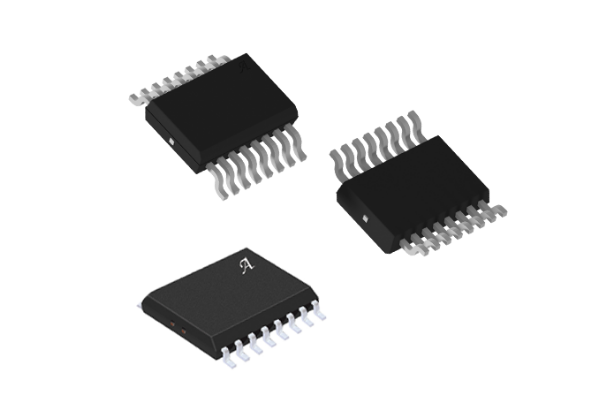

MA package maximizes current range; LA package minimizes noise

Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS37002KMABTR-050B3

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±33, ±40, ±50, ±66
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 125°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002KMABTR-050B5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: -
isolation_voltage_vrms: -
creepage_mm: -
clearance_mm: -
primary_conductor_resistance_mohm: -
current_measurement_range_a: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
package: -
market: -
features: -

ACS37002KMABTR-050B5-M

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±33, ±40, ±50, ±66
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LLAATR-015B3

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: 500
isolation_voltage_vrms: 4242
creepage_mm: 7.9
clearance_mm: 7.9
primary_conductor_resistance_mohm: 1
current_measurement_range_a: ±10, ±12, ±15, ±20
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LLAATR-015B5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: 500
isolation_voltage_vrms: 4242
creepage_mm: 7.9
clearance_mm: 7.9
primary_conductor_resistance_mohm: 1
current_measurement_range_a: ±10, ±12, ±15, ±20
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LLAATR-025B5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: 500
isolation_voltage_vrms: 4242
creepage_mm: 7.9
clearance_mm: 7.9
primary_conductor_resistance_mohm: 1
current_measurement_range_a: ±25, ±30, ±37.5, ±50
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LLAATR-025U3

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: 500
isolation_voltage_vrms: 4242
creepage_mm: 7.9
clearance_mm: 7.9
primary_conductor_resistance_mohm: 1
current_measurement_range_a: 25, 30, 37.5, 50
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-050B3

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±33, ±40, ±50, ±66
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-050B5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: -
isolation_voltage_vrms: -
creepage_mm: -
clearance_mm: -
primary_conductor_resistance_mohm: -
current_measurement_range_a: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
package: -
market: -
features: -

ACS37002LMABTR-050B5-M

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±33, ±40, ±50, ±66
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-050U3

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: 33, 40, 50, 66
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-050U5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: -
isolation_voltage_vrms: -
creepage_mm: -
clearance_mm: -
primary_conductor_resistance_mohm: -
current_measurement_range_a: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
package: -
market: -
features: -

ACS37002LMABTR-050U5-M

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: 33, 40, 50, 66
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-066B3

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±66, ±80, ±100, ±133
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-066B5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: -
isolation_voltage_vrms: -
creepage_mm: -
clearance_mm: -
primary_conductor_resistance_mohm: -
current_measurement_range_a: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
package: -
market: -
features: -

ACS37002LMABTR-066B5-M

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: ±66, ±80, ±100, ±133
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-066U3

basic_isolation_working_voltage_vrms: 1097
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: 66, 80, 100, 133
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMABTR-066U5

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: -
isolation_voltage_vrms: -
creepage_mm: -
clearance_mm: -
primary_conductor_resistance_mohm: -
current_measurement_range_a: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
package: -
market: -
features: -

ACS37002LMABTR-066U5-M

basic_isolation_working_voltage_vrms: -
reinforced_isolation_working_voltage_vrms: 565
isolation_voltage_vrms: 5000
creepage_mm: 8
clearance_mm: 8
primary_conductor_resistance_mohm: 0.85
current_measurement_range_a: 66, 80, 100, 133
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-050B3

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±33, ±40, ±50, ±66.7
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-050B5

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±33, ±40, ±50, ±66.7
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-050U5

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: 40, 50, 33.3, 66.7
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-066B3

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±80, ±100, ±133, ±66.7
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-066B5

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±80, ±100, ±133, ±66.7
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-090B3

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±90, ±108, ±135, ±180
bandwidth_khz: 400
supply_voltage_v: 3.3
temp_ranges: -40°C to 150°C

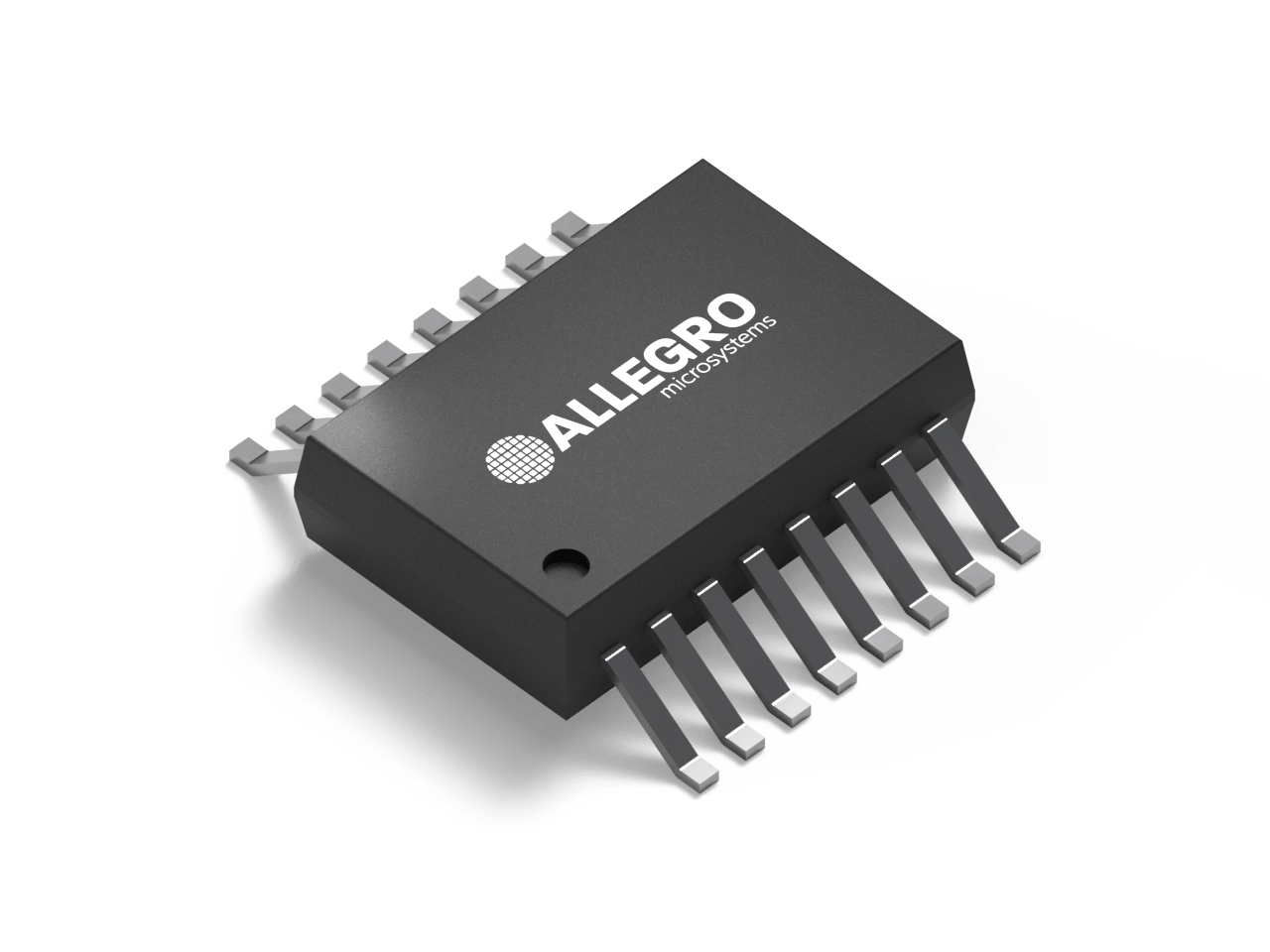

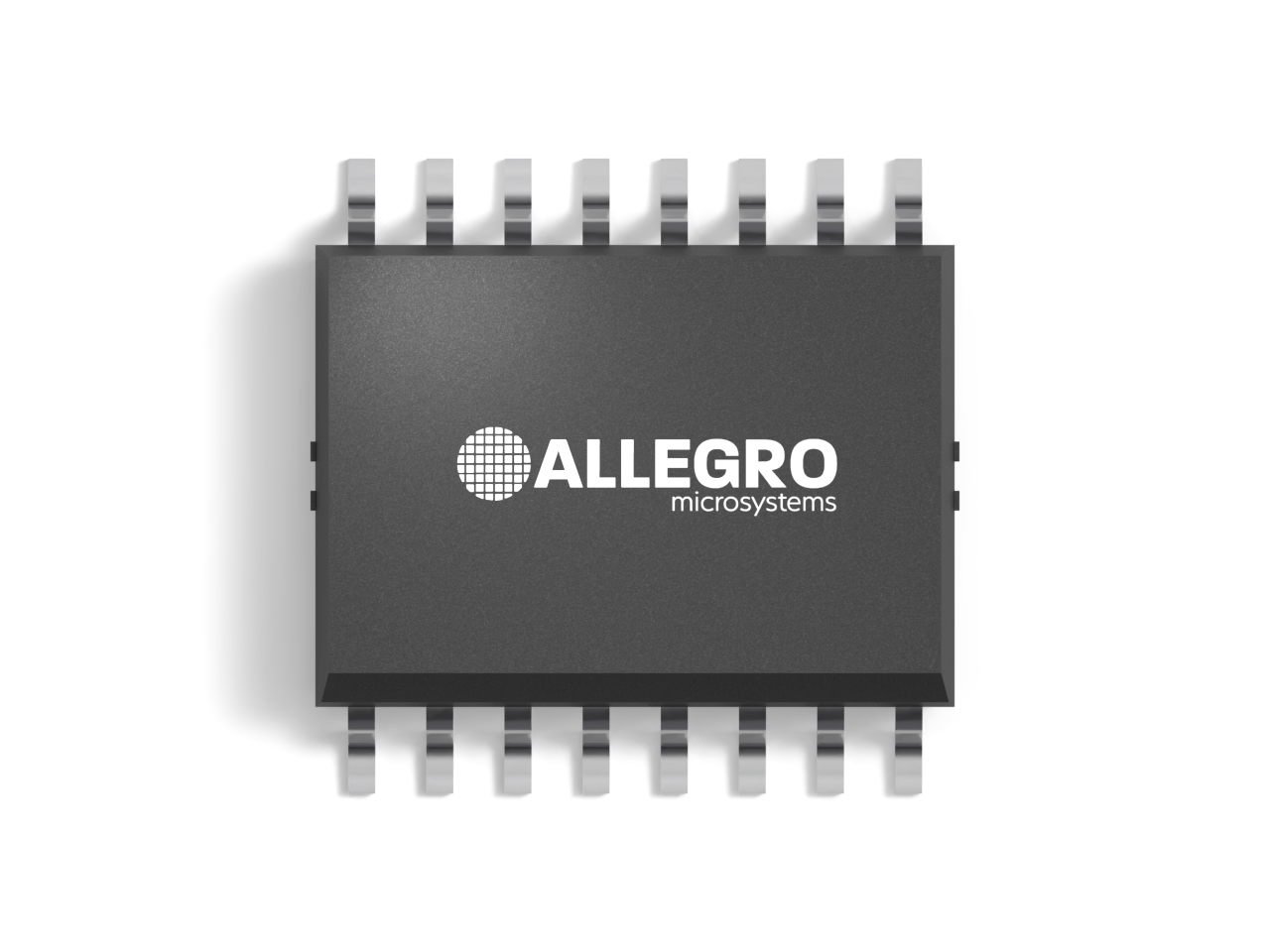

package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS37002LMCATR-090B5

basic_isolation_working_voltage_vrms: 1144
reinforced_isolation_working_voltage_vrms: 572
isolation_voltage_vrms: 5000
creepage_mm: 8.5
clearance_mm: 8.5
primary_conductor_resistance_mohm: 0.27
current_measurement_range_a: ±90, ±108, ±135, ±180
bandwidth_khz: 400
supply_voltage_v: 5
temp_ranges: -40°C to 150°C
package: 16-pin SOICW
market: Automotive
features: Adjustable Gain, Zero Current Reference Voltage Output, Adjustable Overcurrent Fault
