80V Automotive Half-Bridge MOSFET Driver with ASIL Compliance and Diagnostics

AMT49502

Markets Served

The AMT49502 offers a robust and reliable gate drive solution for automotive applications, with ASIL compliance, integrated diagnostics, and a wide operating voltage range (5.5V-80V) for use in both 12V and 48V systems.

View Datasheet
Evaluation Board
LiveBench

Product Details

Top Features

  • 5.5 to 80 V supply voltage operating range
  • AEC-Q100 Half Bridge MOSFET Driver
  • Independent control of high-side and low-side gate drives
  • SPI-compatible serial interface with programable diagnostics
  • Current sense amplifier
Target Application

Part Number Specifications and Availability

View Full Specification Details

AMT49502KLPTR-3-1

supply_voltage_min_v
5.5
supply_voltage_max_v
80
architecture
Gate Driver
control_interface
Direct Control, I2C/SPI
rds_on
23.9
sleep_current
30
current_sense_amplifier
1
typical_load_current_a
0-20
package

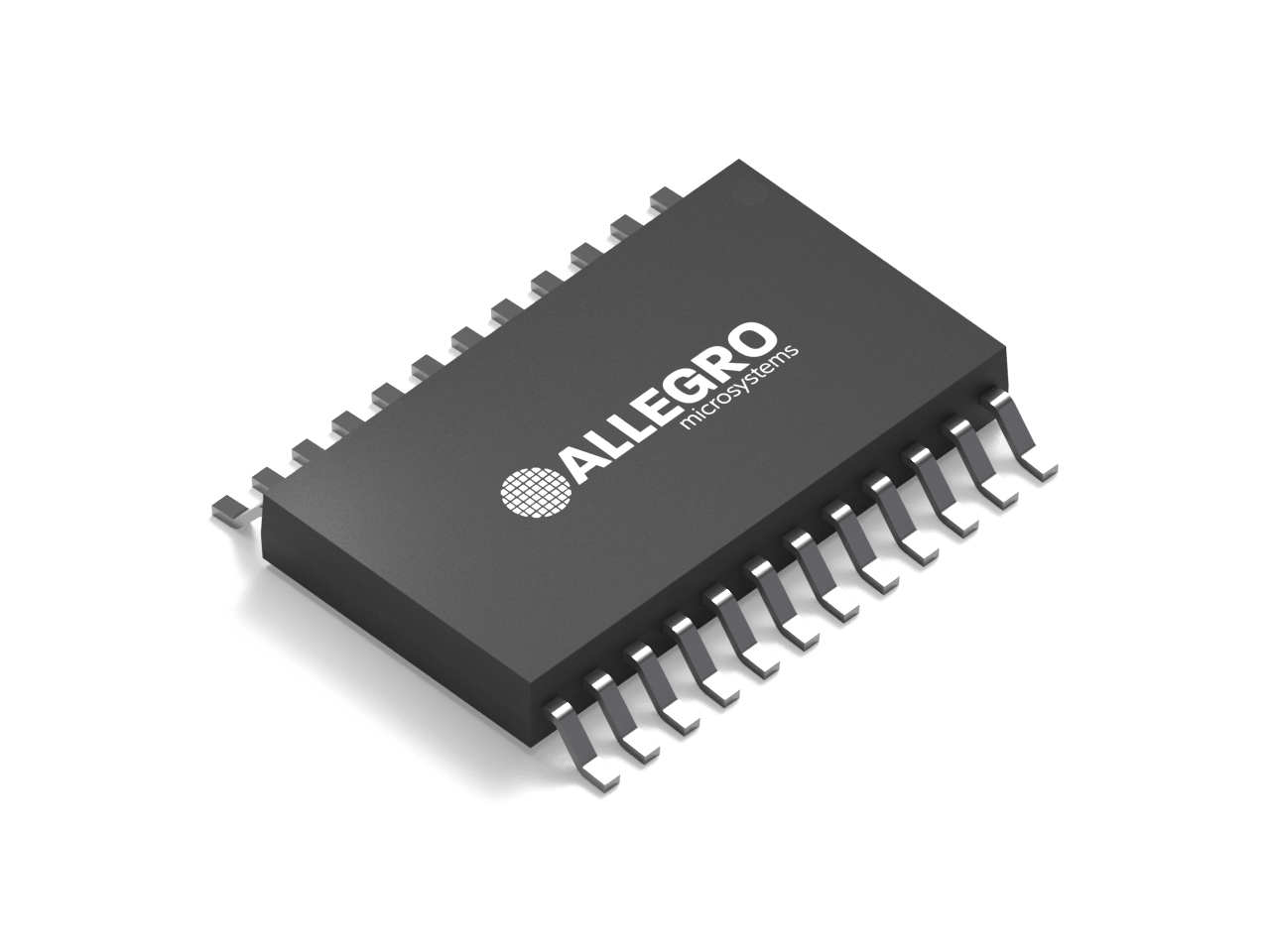

24-Pin TSSOP
market
Automotive

AMT49502KLPTR-5

supply_voltage_min_v
-
supply_voltage_max_v
-
architecture
-
control_interface
-
rds_on
-
sleep_current
-
current_sense_amplifier
-
typical_load_current_a
-
package
-
market
-

AMT49502KLPTR-5-1

supply_voltage_min_v
5.5
supply_voltage_max_v
80
architecture
Gate Driver
control_interface
Direct Control, I2C/SPI
rds_on
23.9
sleep_current
30
current_sense_amplifier
1
typical_load_current_a
0-20
package
24-Pin TSSOP
market
Automotive
