Electrohydraulic Braking

Electrohydraulic braking architectures utilize an electric brake booster to amplify braking force in hybrid and electric vehicles opposed to the traditional means of using a vacuum booster. These electric braking systems also enable regenerative braking and more advanced automated driving functions.



Our Electrohydraulic braking solution provides fast braking response in emergency situations and smooth handling during automated driving scenarios, such as adaptive cruise control.

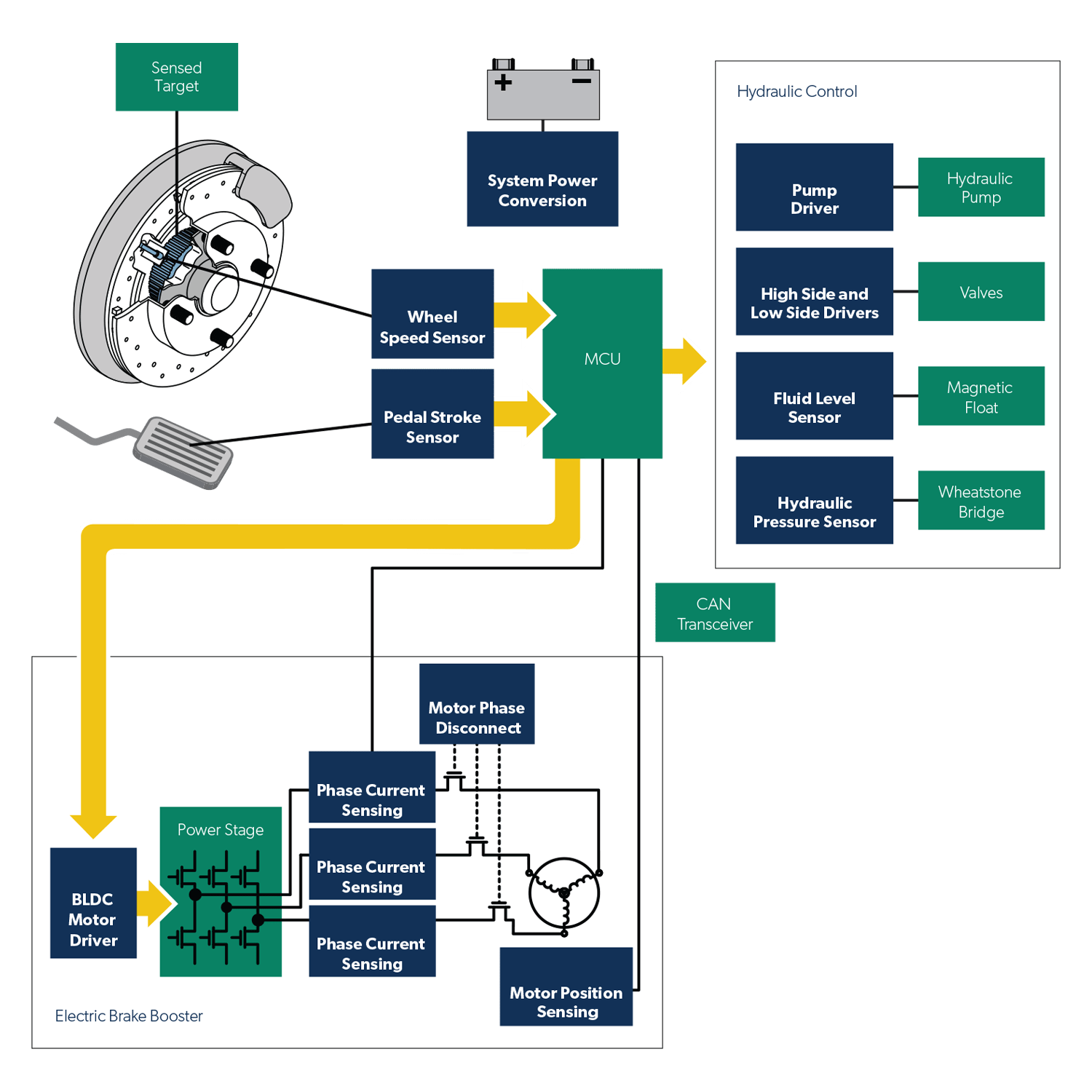

Electrohydraulic Braking Block Diagram
  • More

    System Power Conversion

    ARG81402 – Multi-Output Regulator with Buck Pre-Regulator

    A81407 – Buck or Buck-Boost Pre-Regulator

    ARG82801 – Fully Integrated PMIC plus for 4x High Side Gate Drivers

    Close
  • More

    Wheel Speed Sensor

    A19350 – GMR Speed and Direction Sensor

    A19250 – GMR Speed Sensor

    A19360 – High Resolution GMR Speed and Direction Sensor

    ATS19200 – Hall Speed Sensor

    Close
  • More

    Pedal Stroke Sensor

    A31315 – 3D Magnetic Position Sensor IC


    Close
  • More

    BLDC Motor Driver

    A4911 – Three-Phase MOSFET Driver for 12 or 24V Systems

    A4916 – Three-Phase MOSFET Driver for 12 or 24V Systems

    A4918 – Three-Phase MOSFET Driver for 12 or 24V Systems

    AMT49106 and AMT49107 – 50V BLDC Gate Drivers with Low Voltage Operation

    AMT49100/1 – Three-Phase MOSFET Driver for 48V System

     A89500 – Half Bridge Driver for 12, 24, or 48V systems
    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Motor Phase Disconnect

    A6861 – Three-Phase Isolator MOSFET Driver

    A6862 – Three-Phase Isolator MOSFET Driver

    A81407 – Buck or Buck-Boost Pre-Regulator

    ARG82801 – Fully Integrated PMIC plus for 4x High Side Gate Drivers

    Close
  • More

    Motor Position Sensing

    AAS33001 – Dual Die CVH Angle Sensor

    Close
  • More

    Pump Driver

    A4918 – Three-Phase MOSFET Driver for 12 or 24V Systems Close
  • More

    High Side and Low Side Drivers

    A3942 – 4 Channel High-Side Gate Driver

    A3944 – 6 Channel High-Side Gate Driver

    Close
  • More

    Fluid Level Sensor

    APS11500 – Two-Wire Hall Effect Switch

    Close
  • More

    Hydraulic Pressure Sensor

    A17700 – Pressure Sensor Interface IC (Piezo Resistive)

    Close
