Switches and Latches

Micropower Switches for Battery-Powered and Eco-Conscious Applications

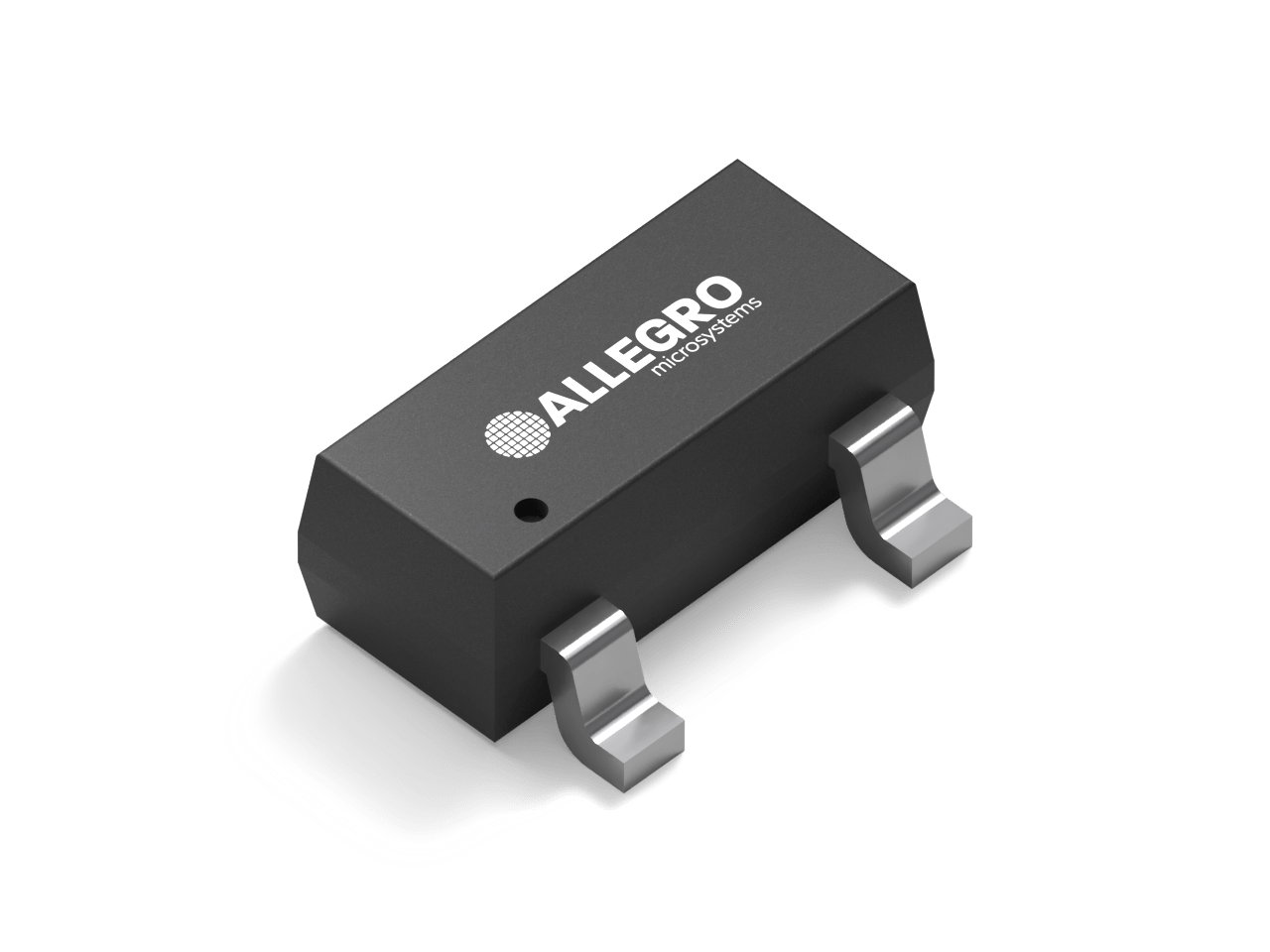

APS11753

Markets Served

The APS11753 Micropower Hall-effect switch ICs are offered with and without AEC-Q100 qualification for low-voltage applications in Automotive, Industrial and Consumer Applications. Additionally, the Micropower logic allows ultra-low power consumption and operation from 2.2 to 5.5 V.

View Datasheet

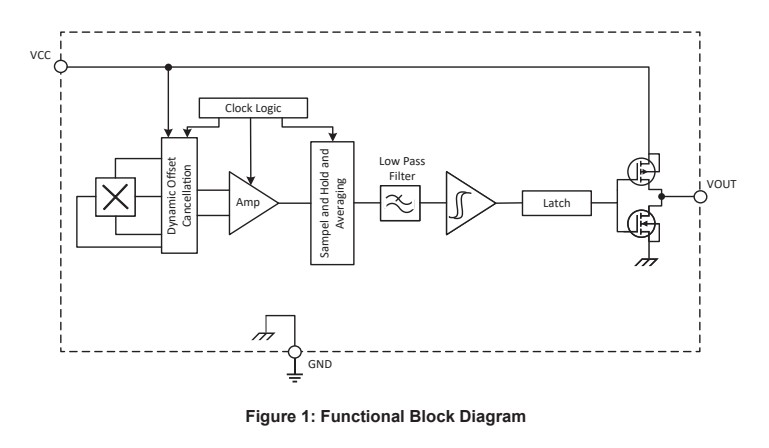

Product Details

Top Features

  • 2.2 to 5.5V operation
  • Ultra-low power consumption (micropower)
  • AEC-Q100 qualified
  • Omnipolar and unipolar switch threshold options
  • Sleep time options
  • High and low sensitivity magnetic switch point options
  • Choice of output polarity
  • Chopper stabilization
    • Low switch point drift over temperature
    • Insensitive to physical stress
  • Push-pull output
  • Solid-state reliability
  • Industry-standard package and pinout

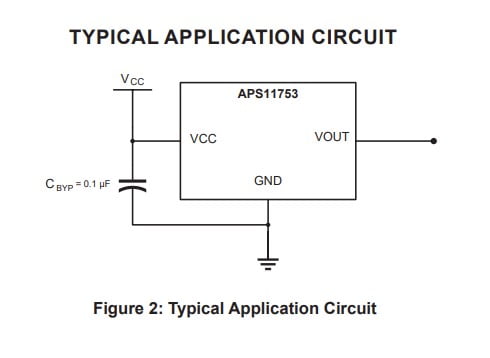

Target Application

Part Number Specifications and Availability

View Full Specification Details

APS11753KMDALX-1PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 125°C
technology
Hall
asil_rated
No
typical_bop
1.5/15
typical_brp
1.0/10
packing_information
Reel
market
Industrial

APS11753KMDALX-3PL1

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 125°C
technology
Hall
asil_rated
No
typical_bop
3.0/30
typical_brp
2.0/20
packing_information
Reel
market
Industrial

APS11753KMDALX-3PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 125°C
technology
Hall
asil_rated
No
typical_bop
3.0/30
typical_brp
2.0/20
packing_information
Reel
market
Industrial

APS11753KMDALX-9PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 125°C
technology
Hall
asil_rated
No
typical_bop
40/400
typical_brp
33.5/335
packing_information
Reel
market
Industrial

APS11753LMDALX-1PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 150°C
technology
Hall
asil_rated
No
typical_bop
1.5/15
typical_brp
1.0/10
packing_information
Reel
market
Automotive

APS11753LMDALX-3PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 150°C
technology
Hall
asil_rated
No
typical_bop
3.0/30
typical_brp
2.0/20
packing_information
Reel
market
Automotive

APS11753LMDALX-9PL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
features
Low-Voltage (2.2V to 5.5V) Micropower Hall Switch for Industrial Applications
output
Voltage
sensor_type
1D Planar
temp_ranges
-40°C to 150°C
technology
Hall
asil_rated
No
typical_bop
40/400
typical_brp
33.5/335
packing_information
Reel
market
Automotive
