ATS19520: Vibration-Tolerant Hall-Effect Transmission Speed and Direction Gear Tooth Sensor IC

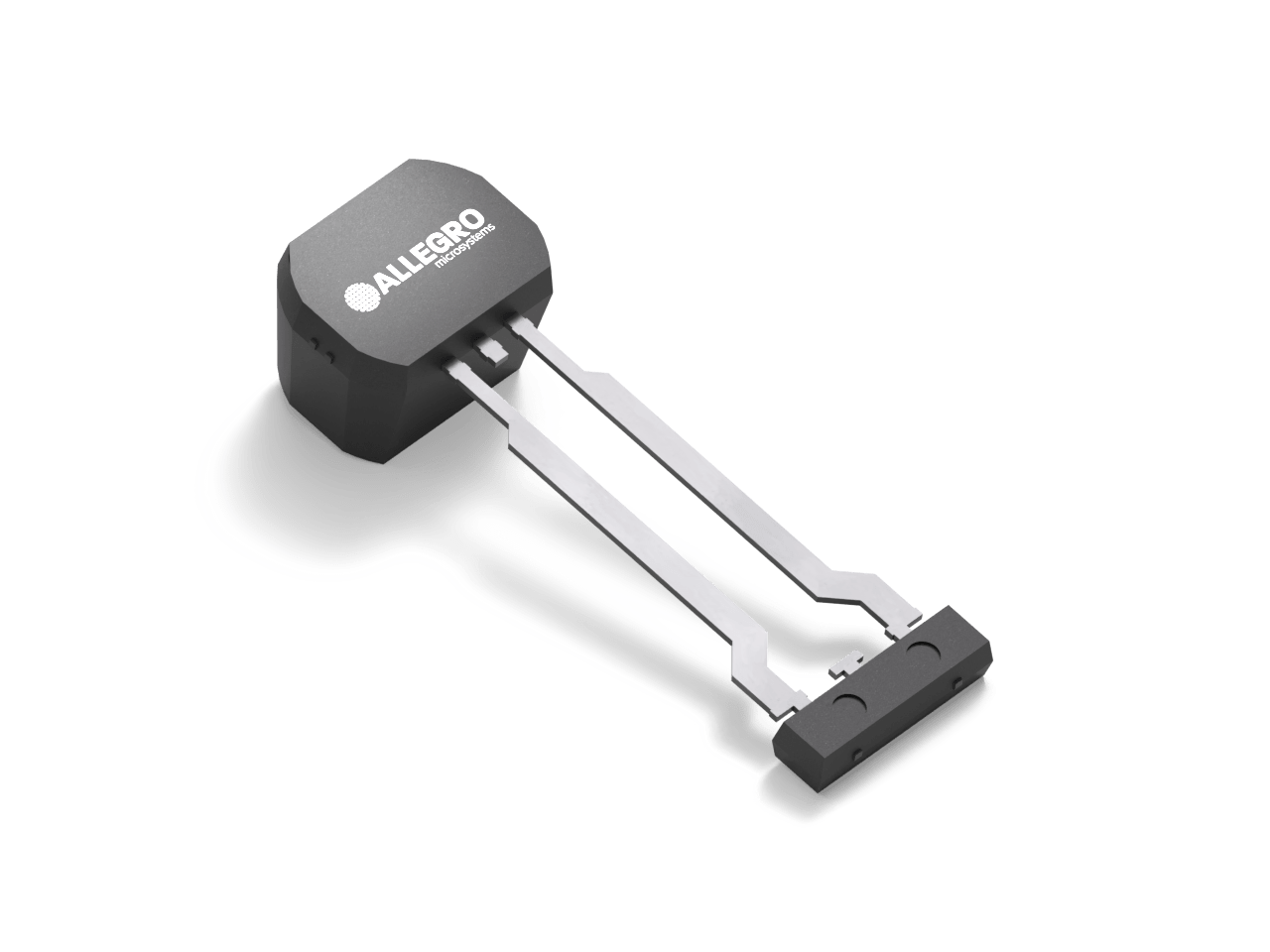

Allegro 3-PIN SIP SN Package

ATS19520 ECAD Model Type Image
ATS19520 Datasheet
Navigate

Description

Top Features

Packaging

The ATS19520 is an advanced Hall-effect integrated circuit (IC) that uses an integrated back-bias magnet to measure the speed and direction of rotating ferrous targets. The package features an integrated capacitor for electromagnetic compatibility (EMC).

Employing intelligent algorithms, the ATS19520 allows for stable operation during vibration and highly dynamic air gap environments common to transmission applications. In addition, the differential sensing offers inherent rejection of interfering common-mode magnetic fields.

The ATS19520 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL B capability (pending assessment) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.

The ATS19520 is provided in a 3-pin SIP package (suffix SN) that is lead (Pb) free, with tin leadframe plating. The SN package includes an IC, magnet, and capacitor integrated into a single overmold, with an additional molded lead-stabilizing bar for robust shipping and ease of assembly.

For applications that require no integrated magnet, please see the A19520.  For applications that require a 3-wire speed and direction transmission gear tooth sensor, please see the ATS693.
  • Differential Hall-effect sensor measures ferrous targets with inherent stray field immunity
  • SolidSpeed Digital Architecture™ provides robust, adaptive performance with advanced algorithms that provide vibration immunity over the full target pitch
  • Integrated solution includes a back-bias magnet and capacitor in a single overmolded package
  • ISO 26262:2011 ASIL B with integrated diagnostics and certified safety design process (pending assessment)
  • Two-wire current source output pulse-width protocol supporting speed, direction, and ASIL error reporting
  • EEPROM enables factory traceability

Typical Applications

Allegro 3-PIN SIP SN Package

The ATS19520 is provided in a 3-pin SIP package (suffix SN) that is lead (Pb) free, with tin leadframe plating.

SN Package Documentation

× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note Selection Guide
Documents Found: 32
Document Type Document Name
Application Note
Giant Magnetoresistance versus Hall-effect: A Comparison of Technologies for Speed Sensor Applications
Application Note
Transmission Gear Tooth Sensing
Application Note
Fundamental Properties of Speed Sensors
Application Note
Target Design for Hall Transmission Sensors
Selection Guide
Allegro Product Selection Guide
