ATS468LSGTN-T
- direction_info
- Speed
- physical_interface
- 3-Wire (voltage)
- integrated_components
- Magnet
- technology
- Hall
- package
- 4-Pin SIP
- market
- Automotive, Industrial

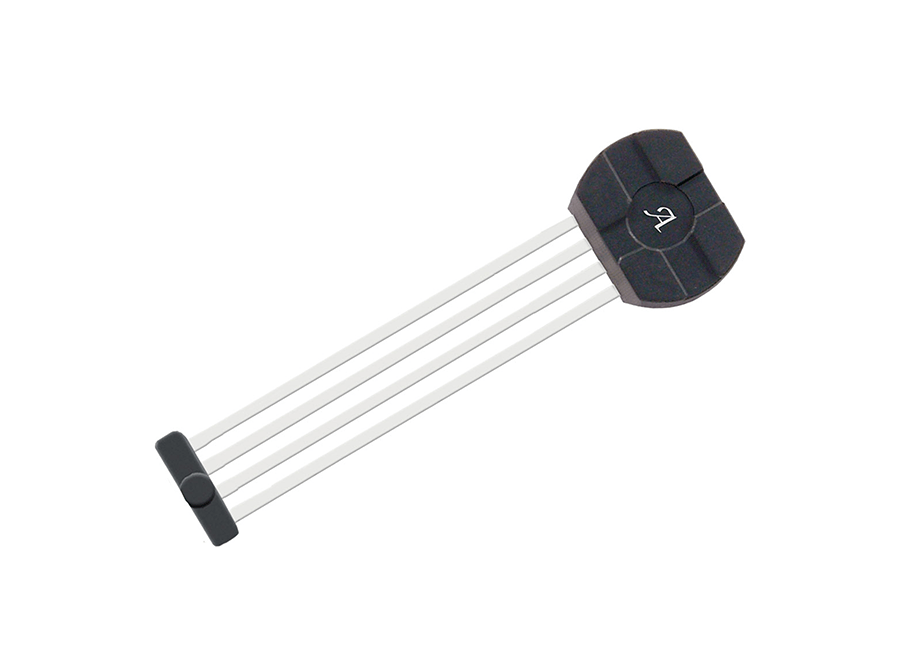

The ATS468 provides accurate and reliable gear tooth sensing with true zero-speed operation and continuous calibration. Its integrated Hall IC and magnet pellet simplify implementation.
Product Details
Product Details
Top Features
- Wide operating voltage range
- Peak detecting algorithm robust against signal perturbations
- Capable of sensing a wide range of target types
- Running mode calibration for continuous optimization
- Single chip IC for high reliability
- Precise duty cycle signal throughout operating temperature range
- Large operating air gaps
- Automatic Gain Control (AGC) for air-gap–independent switchpoints
- Automatic Offset Adjustment (AOA) for signal processing optimization
- True zero-speed operation
- Undervoltage lockout
- Reverse battery protection
- Robust test coverage capability with Scan Path and IDDQ measurement
Typical Applications
- Speedometer

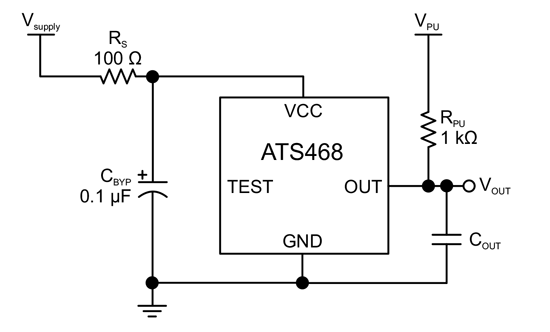

Target Application
Part Number Specifications and Availability
View Full Specification Details
ATS468LSJTN-W-T
- direction_info
- -
- physical_interface
- -
- integrated_components
- -
- technology
- -
- package
- -
- market
- Automotive, Industrial
