ATS627LSGTN-RMLD-T
- market
- Automotive
Magnetic Speed Sensors
True Zero-Speed Gear Tooth Sensor IC with High Accuracy and Low Jitter
ATS627
Markets Served

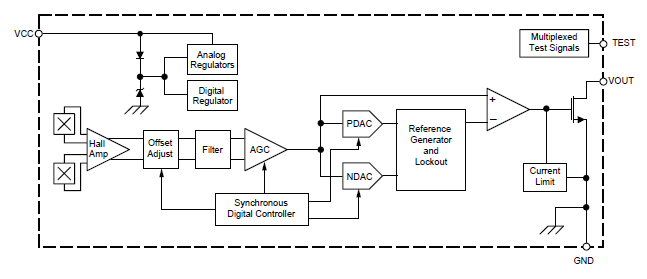

The ATS627 offers precise gear tooth sensing with true zero-speed performance, low jitter, and high accuracy. Its integrated Hall IC and rare earth pellet configuration provide a robust and reliable solution for automotive applications.
Product Details
Product Details
Top Features
- Highly accurate in presence of:
- Anomalous target geometry (tooth-tooth variation)
- Signature teeth or valleys
- Target runout
- Highly repeatable output edges (low jitter)
- True zero-speed operation
- Undervoltage lockout
- Air gap independent switchpoints
- Defined power-on state
- High operating temperature
- Single-chip sensing IC for high reliability
- Enhanced quality through Scan Path and IDDQ measurement
- Enhanced EMC performance
Part Number Specifications and Availability
View Full Specification Details
ATS627LSGTN-T
- market
- Automotive
ATS627LSJTN-T
- market
- Automotive
