ATS16351PSMGTN
- direction_info
- Speed
- physical_interface
- 3-Wire (voltage)
- power_on_state
- Self-Calibrating TPOS
- temperature
- -40°C to 160°C
- integrated_components
- C1, C2, R1, R2, Magnet
- technology
- GMR

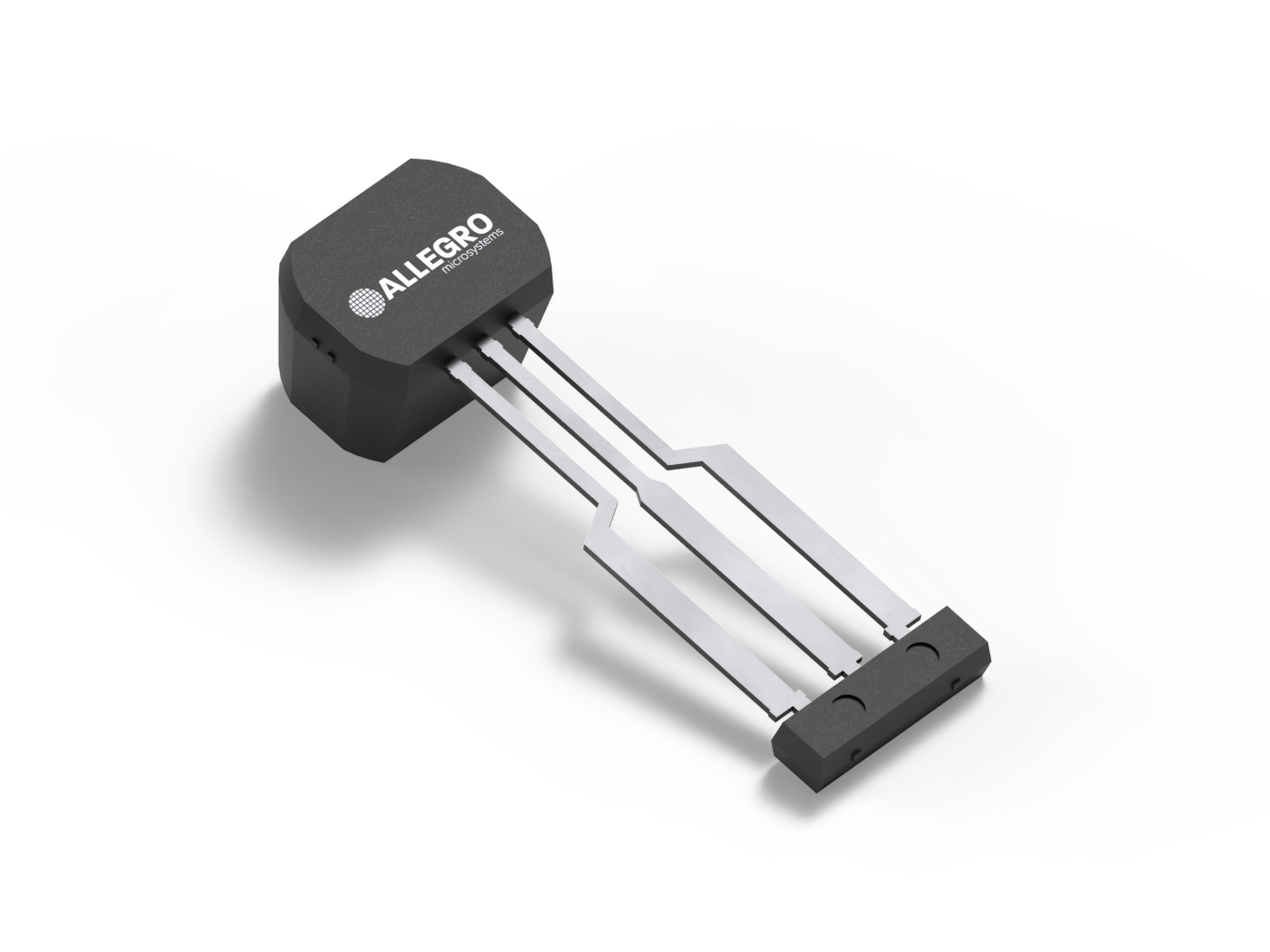

- package
- 3-Pin SIP
- market
- Automotive
The ATS16351PSM offers precise camshaft speed and position sensing with integrated GMR technology, true power-on state (TPOS) detection, and auto-calibration for simplified system design.
Product Details
Product Details
Top Features
- ASIL B safety design process with integrated diagnostics
- GMR sensing technology
- Stray field immunity
- Extended air gap operation
- True Power On State (TPOS) operation
- Integrated EMC components
- Allegro Target Profile Diagnostics
Target Application
- Camshaft
- 2W-xEV Power
Part Number Specifications and Availability
View Full Specification Details
