2D XtremeSense™ TMR Angle Sensor with High Accuracy

CT310

Markets Served

The CT310 offers high-accuracy XtremeSense TMR angle sensing with low error (less than 0.6°) after one-time compensation. Its dual full-bridge design and differential outputs provide robust performance and redundancy.

View Datasheet

Evaluation Board

LiveBench

Product Details

Top Features

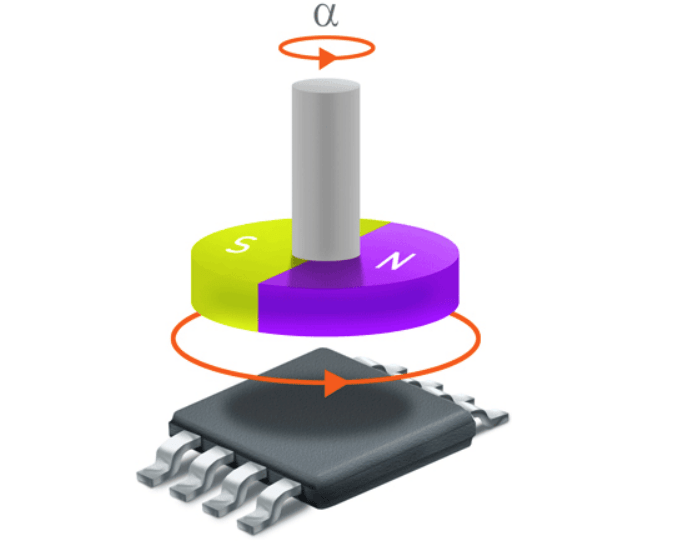

Contactless Angle Measurement from 0° to 360°
Angular Error less than 0.30° (After Compensation)

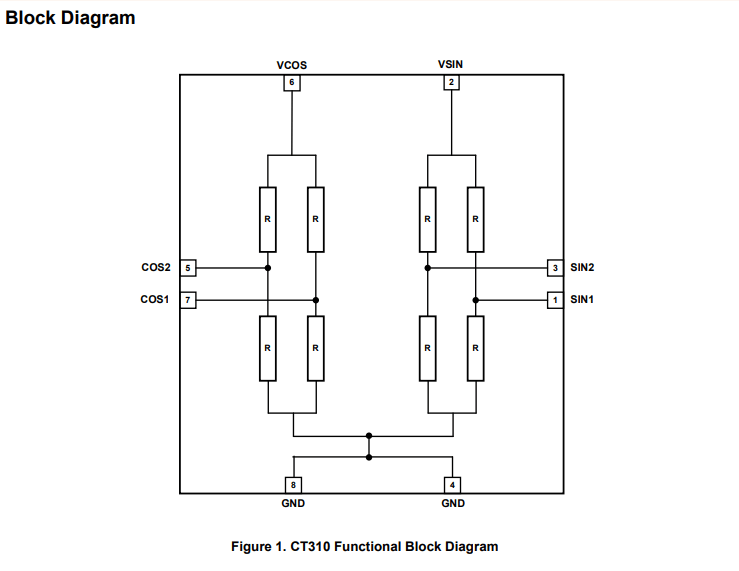

Dual Full-Bridge Resistor Network
Operating Magnetic Field: 25 mT to 90 mT
Stable Magnetic Performance Over Temperature
Differential Outputs for SIN and COS Axes
Wide Operating Temperature Range
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C
- Full: -40°C to +150°C
Package Options:
- 8-lead TSSOP

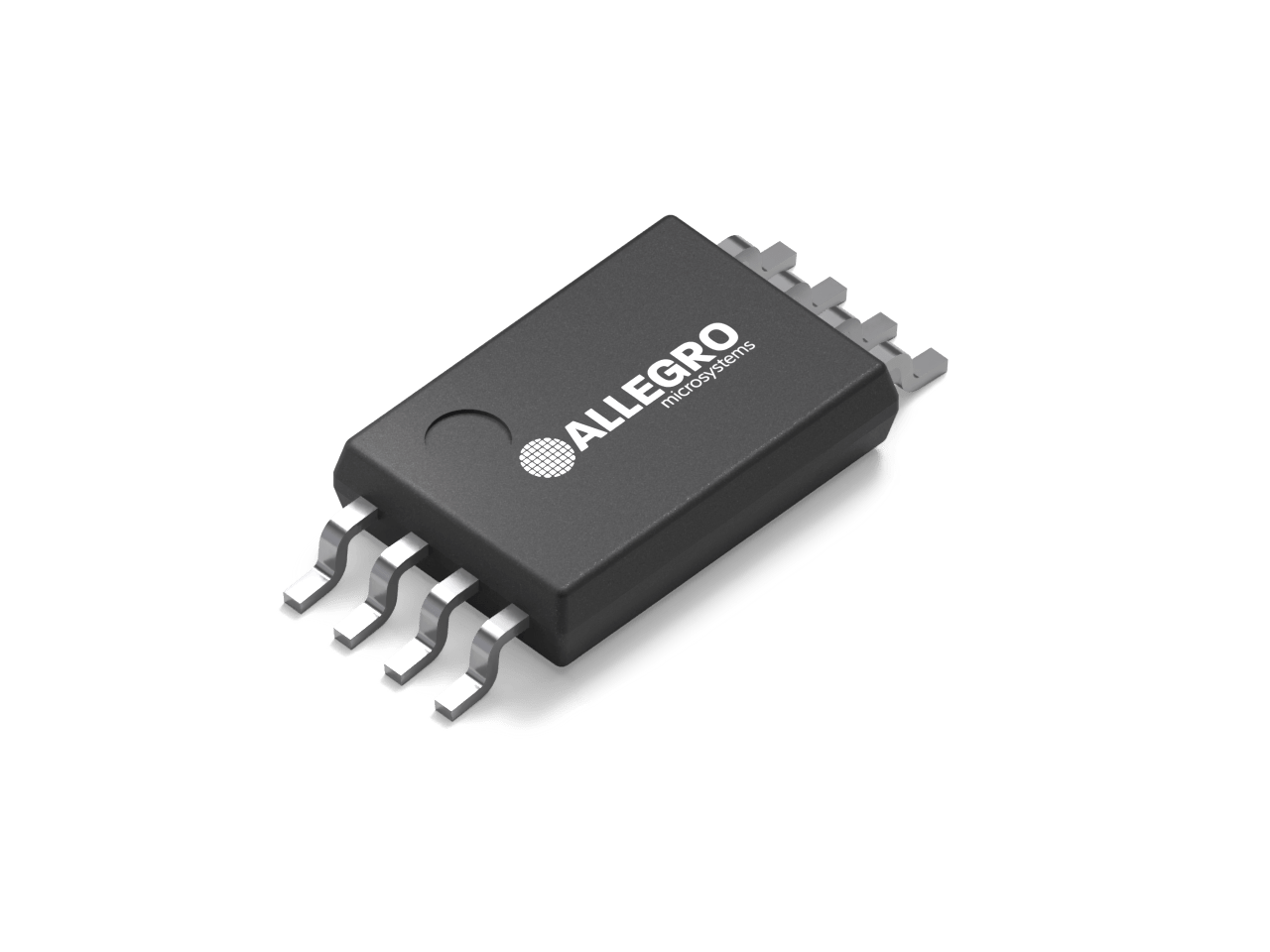

- 8-lead DFN, 2.00 x 2.00 x 0.45 mm
- KGD (Known Good Die) in Wafer Form

Part Number Specifications and Availability

View Full Specification Details

CT310LS-AT8

response_time_us: 1
output_type: Analog
supply_voltage_v: 1.0 to 5.5
resolution: 14 bit
sensitive_axis: XY
temp_range: -40°C to 125°C
package: 8-Pin TSSOP
aec_q100: Yes
sensor_type: TMR
market: Automotive

CT310LS-FD8

response_time_us: -
output_type: -
supply_voltage_v: -
resolution: -
sensitive_axis: -
temp_range: -
package: -
aec_q100: -
sensor_type: -
market: -

CT310LS-FT8

response_time_us: 1
output_type: Analog
supply_voltage_v: 1.0 to 5.5
resolution: 14 bit
sensitive_axis: XY
temp_range: -40°C to 150°C
package: 8-Pin TSSOP
aec_q100: Yes
sensor_type: TMR
market: Automotive

CT310LS-HD8

response_time_us: 1
output_type: Analog
supply_voltage_v: 1.0 to 5.5
resolution: 14 bit
sensitive_axis: XY
temp_range: -40°C to 125°C
package: 8-Pin DFN
aec_q100: No
sensor_type: TMR
market: Automotive

CT310LS-HT8

response_time_us: 1
output_type: Analog
supply_voltage_v: 1.0 to 5.5
resolution: 14 bit
sensitive_axis: XY
temp_range: -40°C to 125°C
package: 8-Pin TSSOP
aec_q100: No
sensor_type: TMR
market: Automotive

CT310LS-ID8

response_time_us: -
output_type: -
supply_voltage_v: -
resolution: -
sensitive_axis: -
temp_range: -
package: -
aec_q100: -
sensor_type: -
market: -

CT310LS-IT8

response_time_us: 1
output_type: Analog
supply_voltage_v: 1.0 to 5.5
resolution: 14 bit
sensitive_axis: XY
temp_range: -40°C to 85°C
package: 8-Pin TSSOP
aec_q100: No
sensor_type: TMR
market: Automotive
