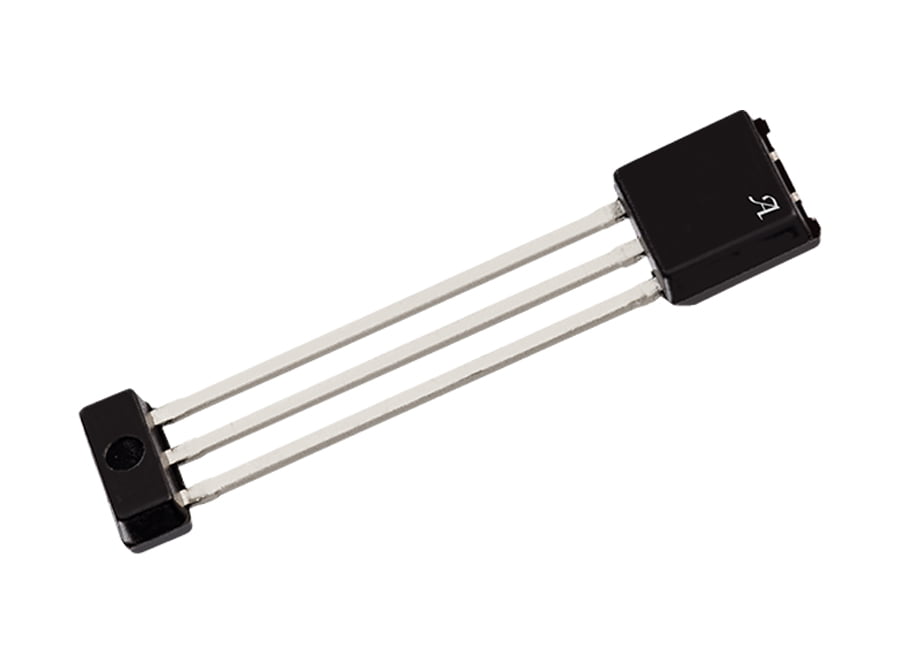

Highly Programmable Linear Hall-Effect Sensor IC with Enhanced Accuracy

A1377

Markets Served

The A1377 offers high-accuracy and high-resolution linear Hall-effect sensing without compromising bandwidth. Segmented temperature compensation and user programmability enable optimized performance in demanding applications.

View Datasheet

Product Details

Top Features

On-board diagnostics
- Broken ground detection
- V_CC undervoltage detection
- V_CC overvoltage detection
Customer-programmable offset, sensitivity, polarity, and output clamps
Integrated power supply and output bypass capacitors
Customer and factory access code for enhanced reliability
- Factory code required for write access to TC trim and other factory registers
- Customer code required for write access to customer registers
Temperature-stable quiescent voltage output and sensitivity: sensitivity temperature coefficient (TC) and QVO temperature coefficient programmed at Allegro for improved accuracy
Optional output voltage clamps provide short-circuit diagnostic capabilities
Wide ambient temperature range: –40°C to 150°C
Enhanced EMC performance for stringent automotive applications
