APM81911KNBATR
- operating_input_voltage_min_v
- 3.5
- operating_input_voltage_max_v
- 36
- market
- Automotive
- topology
- Buck
- output_voltage_max_v
- 24
- iout_per_channel_ma
- 3000
- iout_total_ma
- 3000
- input_voltage_max_v
- 36
- asil_per_qm_rated
- No
- package
- QFN
DCDC Regulators

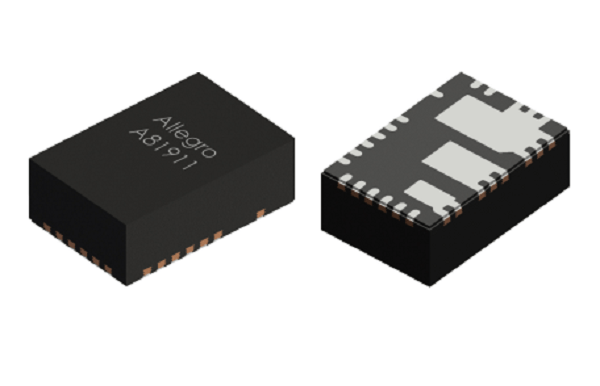

40V, 3A Synchronous Buck Regulator Module with Integrated Inductor and EMI Filter
APM81911
Markets Served
The APM81911 provides a complete and efficient power solution for demanding applications, integrating a synchronous buck regulator, inductor, EMI filter, and low-Iq mode for reduced power consumption.
Product Details
Product Details
Top Features
- Wide VIN range, 3.5V to 36V operation with transients up to 40V
- Ultra-Low EMI with integrated input and bootstrap capacitors, and inductor
- Low Power Mode: 6µA Quiescent Current for increase battery life
- Spread spectrum dithering switching
- AEC-Q100 qualified for Automotive applications
Target Application
Part Number Specifications and Availability
View Full Specification Details
APM81911KNBATR-1
- operating_input_voltage_min_v
- 3.5
- operating_input_voltage_max_v
- 36
- market
- Automotive
- topology
- Buck
- output_voltage_max_v
- 24
- iout_per_channel_ma
- 3000
- iout_total_ma
- 3000
- input_voltage_max_v
- 36
- asil_per_qm_rated
- No
- package
- QFN
