Brushless DC Drivers

3-Phase BLDC Controller and MOSFET Driver with Integrated Hall Commutation and Protection

AMT49413

Markets Served

The AMT49413 simplifies BLDC motor drive design, offering high-current gate drive, integrated Hall commutation, PWM current control, and comprehensive protection features for reliable and efficient operation

Product Details

Top Features

  • High current 3-phase gate drive for N-channel MOSFETs
  • AEC-Q100 Qualified
  • Synchronous rectification
  • Cross-conduction protection
  • Charge pump and top-off charge pump for 100% PWM
  • Integrated commutation decoder logic
  •  Operation over 5.5 to 50 V supply voltage range
  • Extensive diagnostics output
  • Provides +5 V Hall sensor power
  • Low-current sleep mode
Target Application

Part Number Specifications and Availability

View Full Specification Details

AMT49413GEVATR

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed
rds_on
Pre-Driver
commutation
Trapezoidal
motor_positioning_method
Sensored
sleep_current
10
current_sense_amplifiers
1
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C, -40°C to 125°C
package

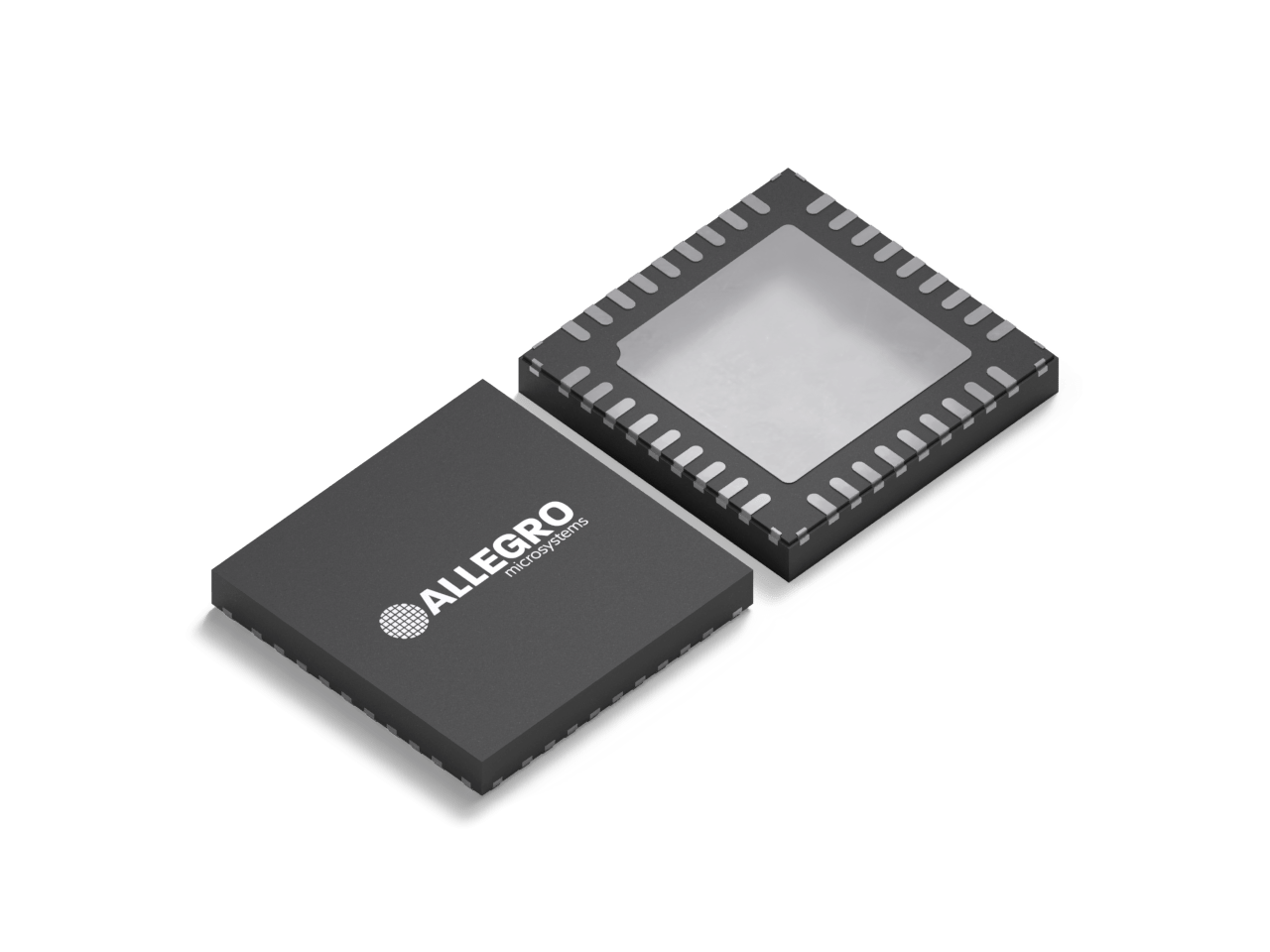

48-Pin QFN
market
Industrial

AMT49413KEVSR-J

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed
rds_on
Pre-Driver
commutation
Trapezoidal
motor_positioning_method
Sensored
sleep_current
10
current_sense_amplifiers
1
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C, -40°C to 125°C
package
48-Pin QFN
market
Automotive
