Brushless DC Drivers

Three-Phase Sensorless Fan Driver with Integrated Closed-Loop Speed Control

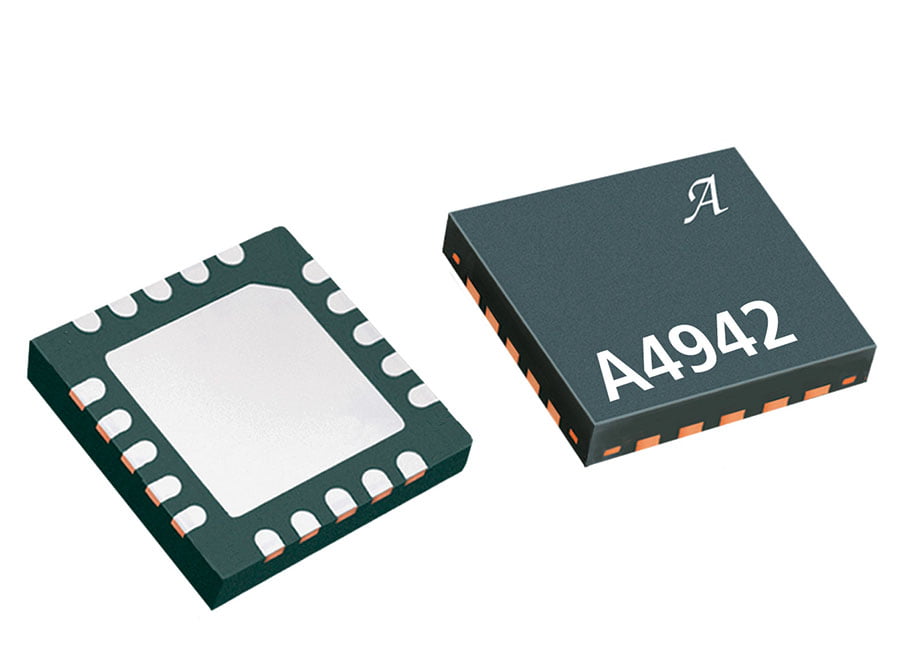

A4942

Markets Served

The A4942 simplifies fan motor control with its sensorless design, integrated closed-loop speed control, and adjustable current limiting for quiet and efficient operation.

View Datasheet

Product Details

Top Features

  • Sensorless (no Hall sensors required)
  • Closed loop speed control
  • Minimal external components
  • PWM speed input
  • FG speed output
  • Lock detection
  • Soft start
  • Overcurrent protection
  • Soft switching for reduced audible noise
Target Application

Part Number Specifications and Availability

View Full Specification Details

A4942GESTR-T

supply_voltage_min_v
5
supply_voltage_max_v
16
peak_output_current_a
1.6
architecture
Integrated MOSFET
rds_on
1.2
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
NA
current_sense_amplifiers
Integrated
temperature
-40°C to 105°C
package
20-Pin QFN
market
Industrial
typical_load_current_a
0-3
