A4918KEVSR-1A-3-T
- supply_voltage_min_v
- 4.5
- supply_voltage_max_v
- 50
- architecture
- Gate Driver
- control_interface
- Direct Control, I2C/SPI
- package
- 48-Pin QFN
- market
- Automotive
- typical_load_current_a
- 10-25
Brushless DC Drivers

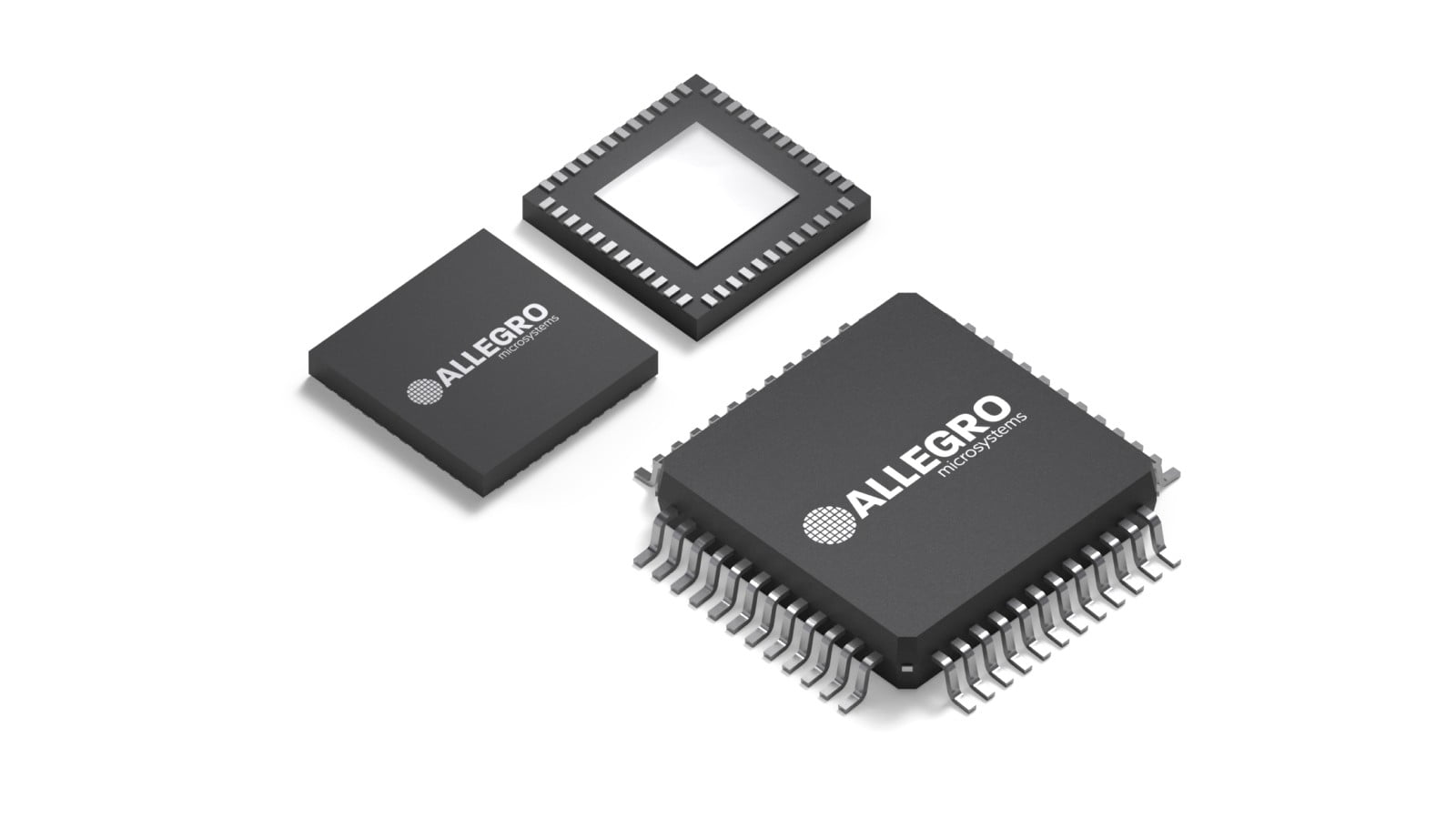

Automotive Three-Phase MOSFET Driver with ASIL Compliance, Diagnostics, and Current Sensing
A4918
Markets Served
The A4918 is an N-channel power MOSFET driver capable of controlling MOSFETs connected in a 3-phase bridge arrangement and is specifically designed for automotive applications with high-power inductive loads, such as BLDC motors.
Product Details
Product Details
Top Features
- 3-phase bridge MOSFET driver
- Bootstrap gate drive for N-channel MOSFET bridge
- Cross-conduction protection with adjustable dead time
- Charge pump for low supply voltage operation
- Programmable gate drive voltage and strength
- 4.5 to 50 V supply voltage operating range
- Integrated logic supply
- Three programmable current sense amplifiers
- SPI-compatible serial interface
- Bridge control by direct logic inputs or serial interface
- Extensive programmable diagnostics
- Diagnostic verification
- Safety assist features
- Automotive AEC-Q100 qualified
Target Application
Part Number Specifications and Availability
View Full Specification Details
A4918KEVSR-1A-5-T
- supply_voltage_min_v
- 4.5
- supply_voltage_max_v
- 50
- architecture
- Gate Driver
- control_interface
- Direct Control, I2C/SPI
- package
- 48-Pin QFN
- market
- Automotive
- typical_load_current_a
- 10-25
A4918KEVSR-3-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- architecture
- -
- control_interface
- -
- package
- -
- market
- -
- typical_load_current_a
- -
A4918KEVSR-5-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- architecture
- -
- control_interface
- -
- package
- -
- market
- -
- typical_load_current_a
- -
A4918KJPTR-1A-3-T
- supply_voltage_min_v
- 4.5
- supply_voltage_max_v
- 50
- architecture
- Gate Driver
- control_interface
- Direct Control, I2C/SPI
- package
- 48-Pin LQFP
- market
- Automotive
- typical_load_current_a
- 10-25
A4918KJPTR-1A-5-T
- supply_voltage_min_v
- 4.5
- supply_voltage_max_v
- 50
- architecture
- Gate Driver
- control_interface
- Direct Control, I2C/SPI
- package
- 48-Pin LQFP
- market
- Automotive
- typical_load_current_a
- 10-25
A4918KJPTR-3-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- architecture
- -
- control_interface
- -
- package
- -
- market
- -
- typical_load_current_a
- -
A4918KJPTR-5-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- architecture
- -
- control_interface
- -
- package
- -
- market
- -
- typical_load_current_a
- -
